| PRODUCT PARAMETERS |
| Weight | 8000KG |
| Dimension (Transport) | 5900*2100*2500MM |
| Dimension (Working) | 4200*3000*6100MM |
| Driling Depth | 350M |
| The Hole Diameter | 105-400MM |
| Dnll Pipe Diameter | 89/102/114 |
| Dril Head Lift Force | 260KN |
| Dril Head Feed Force | 130KN |
| Rotary Speed Rpm | 40-160RPM |
| Max. Torque | 10000N.m |
| Dril Head Feed Stroke | 3300MM |
| Drill Mast Slide Stroke | 800MM |
| Hydraulic Pumps | 100ML/R.16MP |
| Hydraulic Cooling System | Air-cooled |
| Mechanical Winch Capacity | 15KN |
| Power Unit | Weichai 6-cylinder engine |
| Air Pressure | 1.7-3.5MPa |
| Air Consumption | 17-42m³/MIN |
| Equipped With Hammer | Medium and high pressure series |
| Crawier | 8T Steel 400MM |
| Crawler Climbing Angle | 25° |
| Crawer Walking Speed | 2-3KM/H |

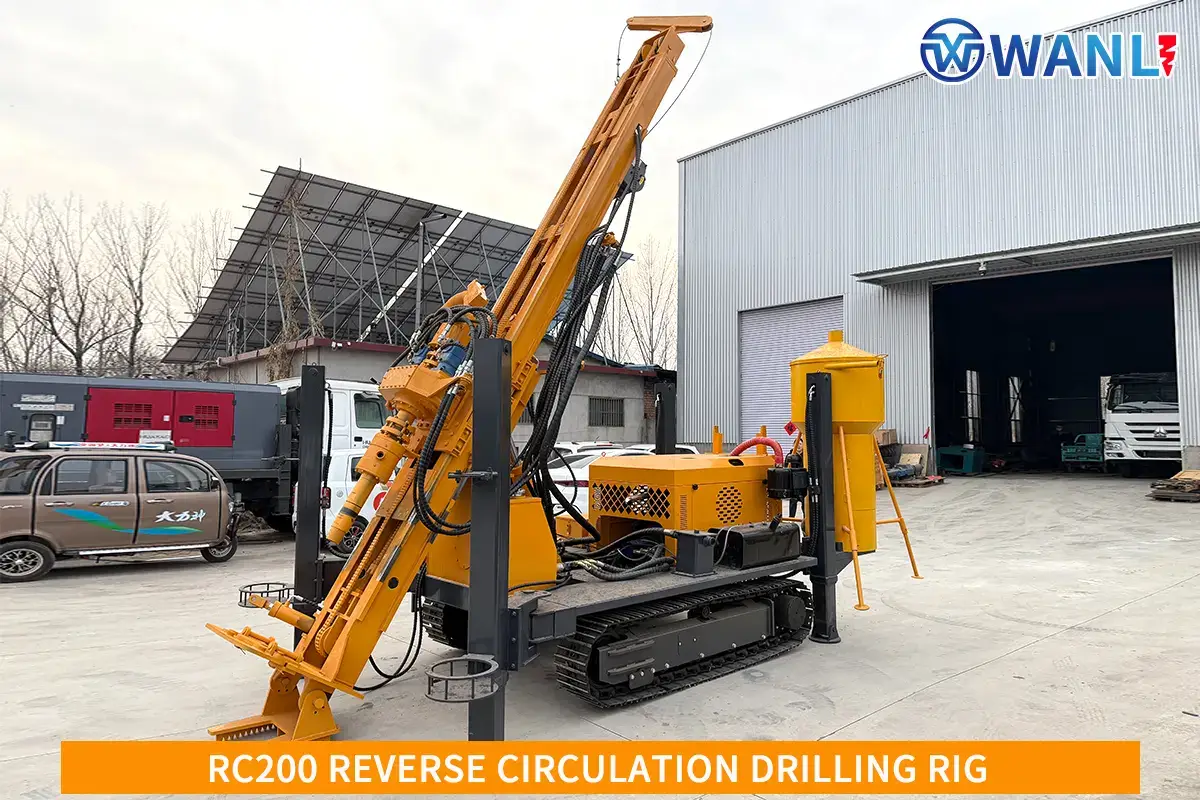

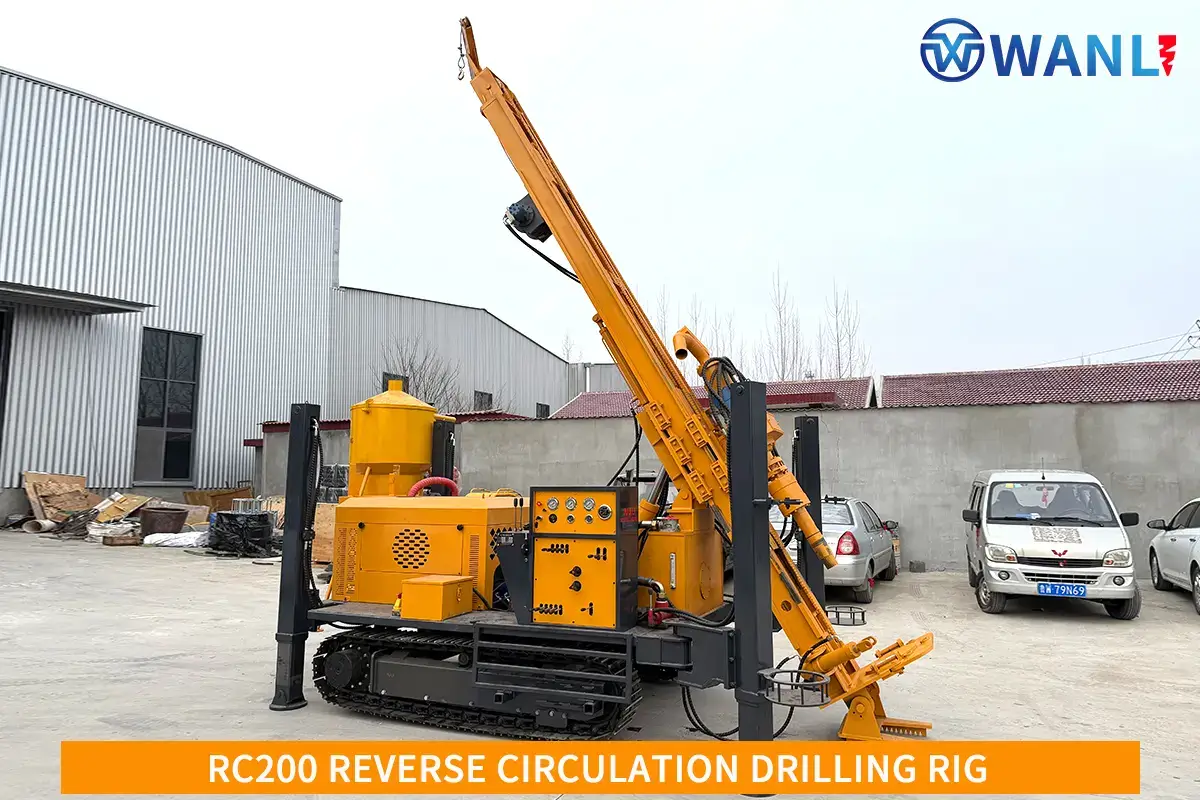

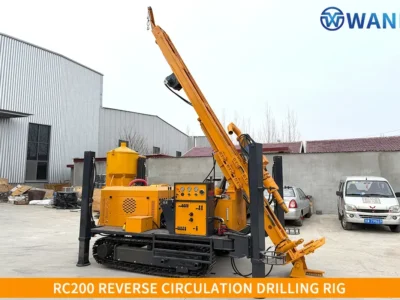

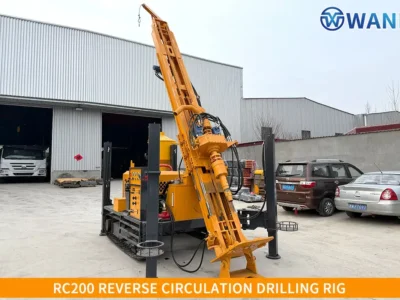

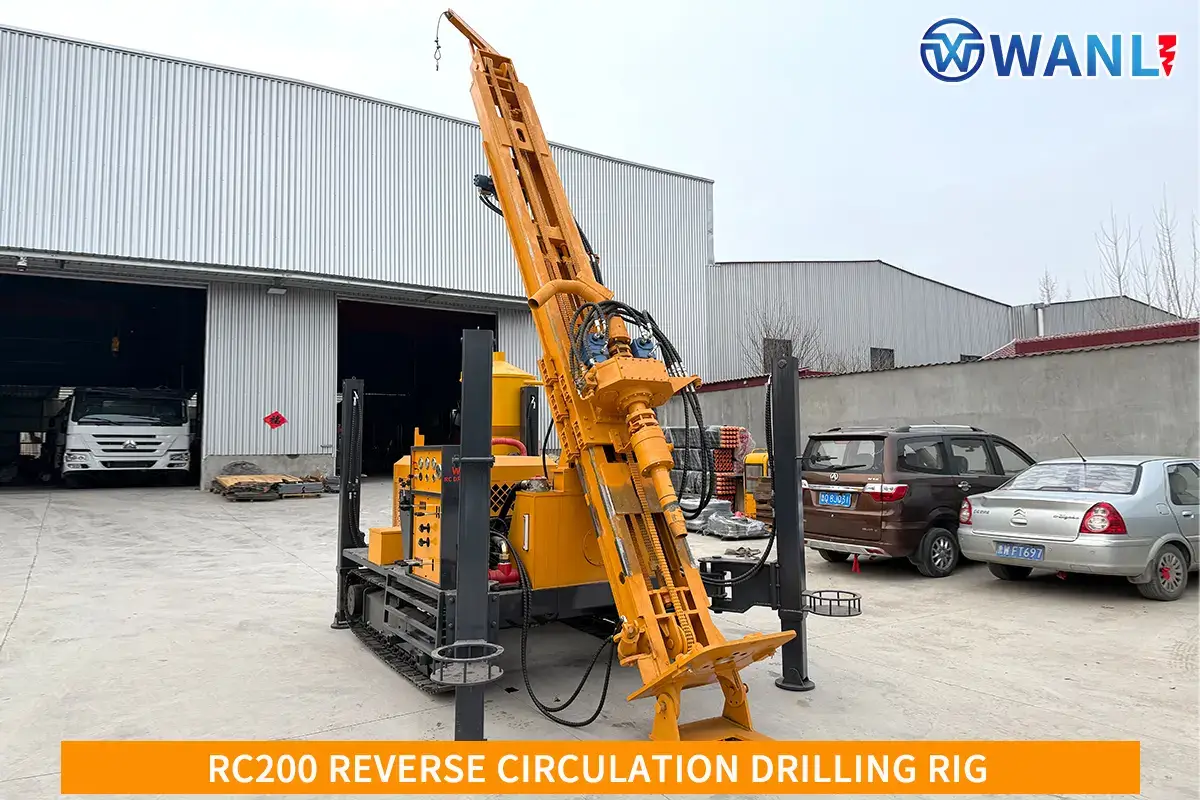

RC Reverse Circulation Drilling Rig
