| PRODUCT PARAMETERS | |||
| Usage | Water Well | Type | water well drilling rig |
| Drilling Depth | Max.150m | Drilling Diameter | 40/70/75120/140/150/325mm |
| Power Type | Diesel | Voltage | 24V,220V Electrical Equipment |
| Core Components | Engine, Bearing, Motor, Pump |
Warranty | 1Year |
| Machinery Test Report |
Provided | Video outgoing- inspection |
Provided |
| Key Selling Points | Low Power,High Efficiency | Place of Origin | Shandong, China |
| Weight | 800KG | Brand Name | XINWANLI |
| Mobility | Wheeled traction | Host power | 22hp engin(16kw) |
| Machine weight | 550KG | Lifting height | max2.5m |
| Lift weight | 8O0KG | Travel mode | Wheel traction type |
| Drill pipe length | 1.5m | Radiator | I piece |
| Startup method | electric start | Drilling diameter range |
75mm-325m |
| Maximum drilling depth |
150m | ||

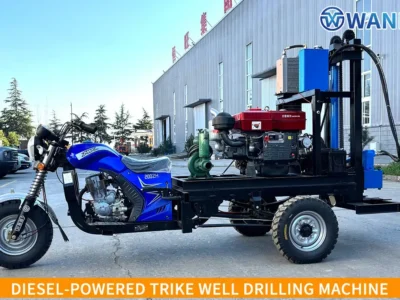

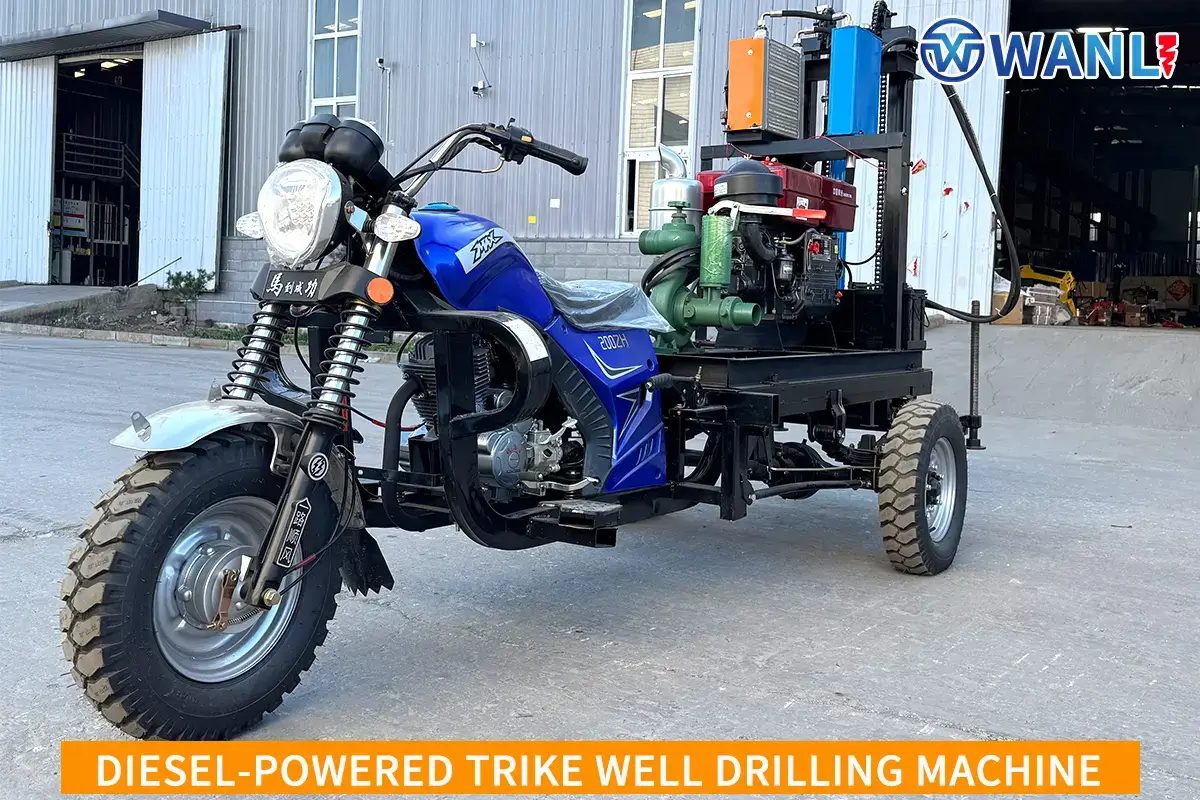

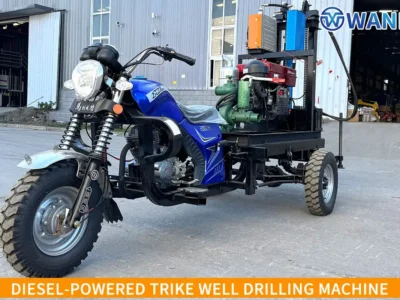

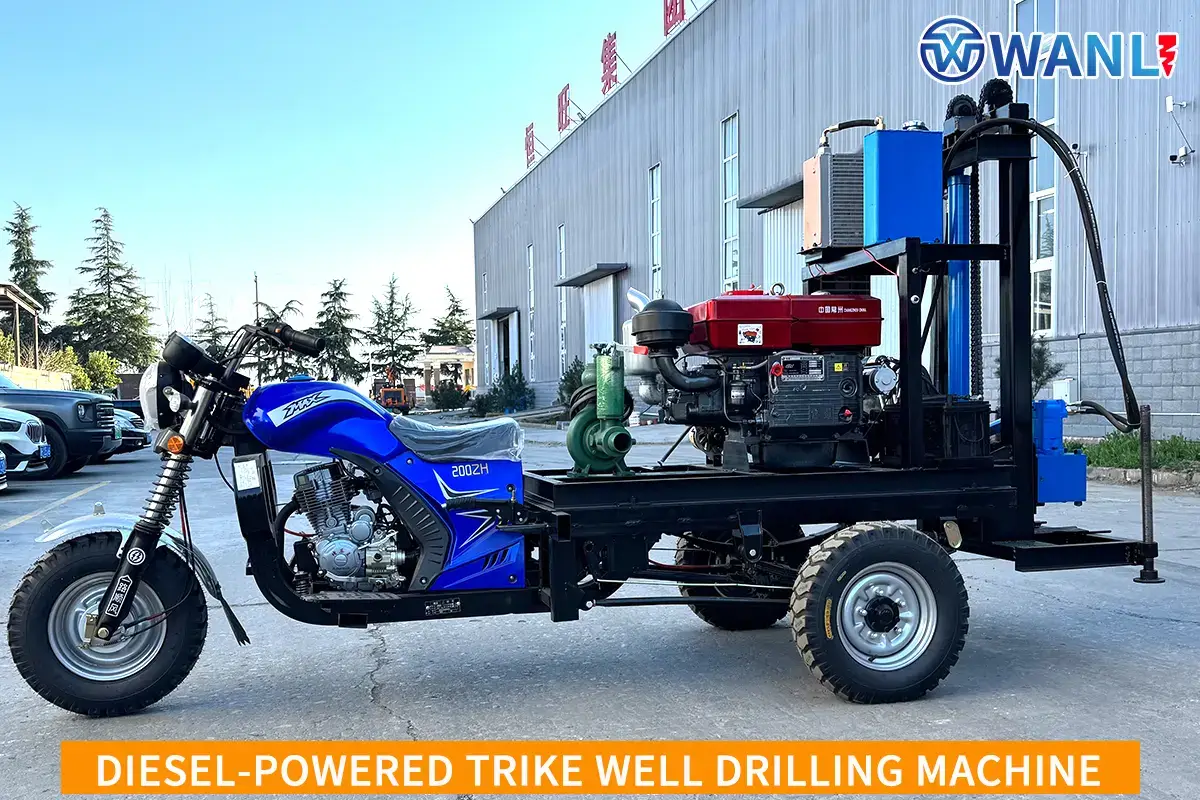

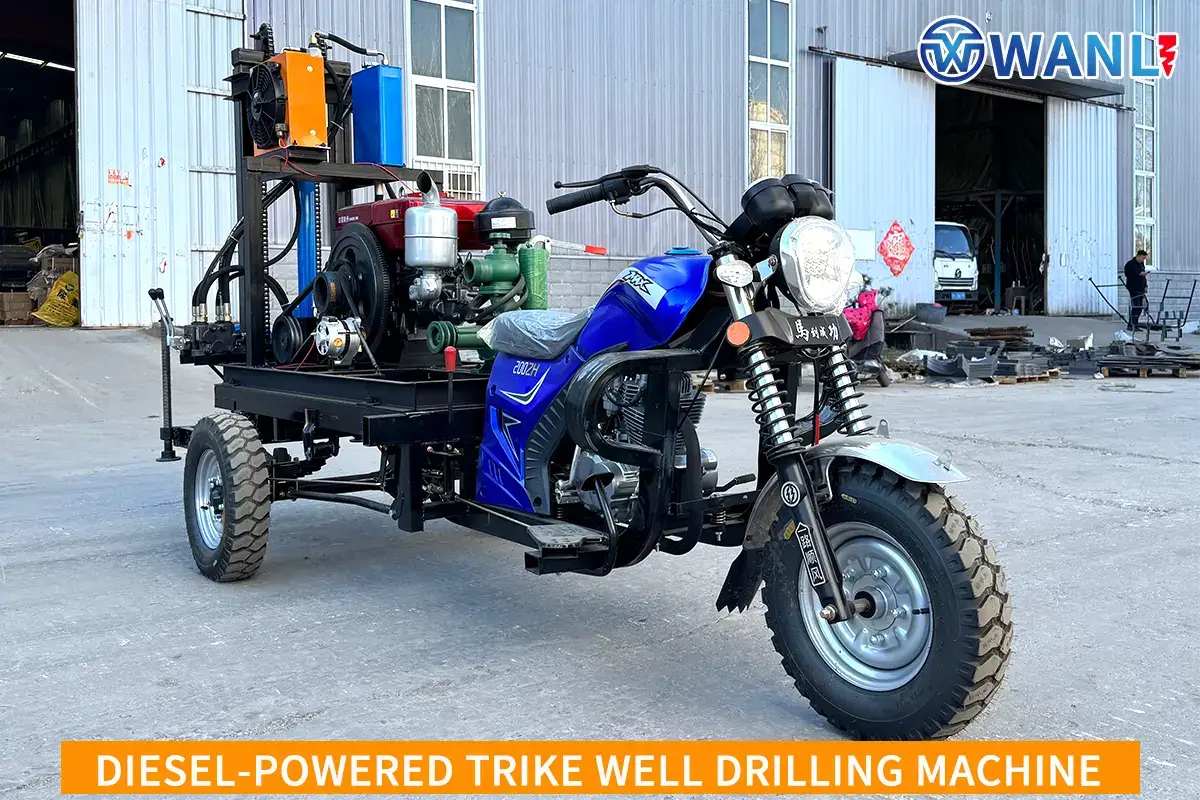

Diesel-Powered Trikewell Drilling Machine
