| PRODUCT PARAMETERS | |||
| Usage | Water Well | Type | water well drilling rig |
| Drilling Depth | Max.200m | Drilling Diameter | 100mm-250mm |
| Power Type | Diesel | Voltage | 220V Electrical Equipment |
| Core Components | Pump | Warranty | 1Year |
| Machinery Test Report |
Provided | Video outgoing- inspection |
Not Available |
| Key Selling Points | Competitive Price | Place of Origin | China Shandong |
| Weight | 4700KG | Brand Name | XINWANLI |
| Dimension(L*W*H) | 4350*1600*2450mm | Mobility | 1 |
| Application | Water Wells Rock Drill Rig | Walking Speed | 2.5kw/h |
| Climbing Angles | 30 | Color | Customer Required |
| Using Air Pressure | 1.7-2.5MPA | Air Consumption | 17-31m3/min |
| Swing Speed | 45-70rpm | Rig Lifting Force | 13T |
| Rapid Rise Speed | 30m/min | Swing Torque | 3400-4700N.m |

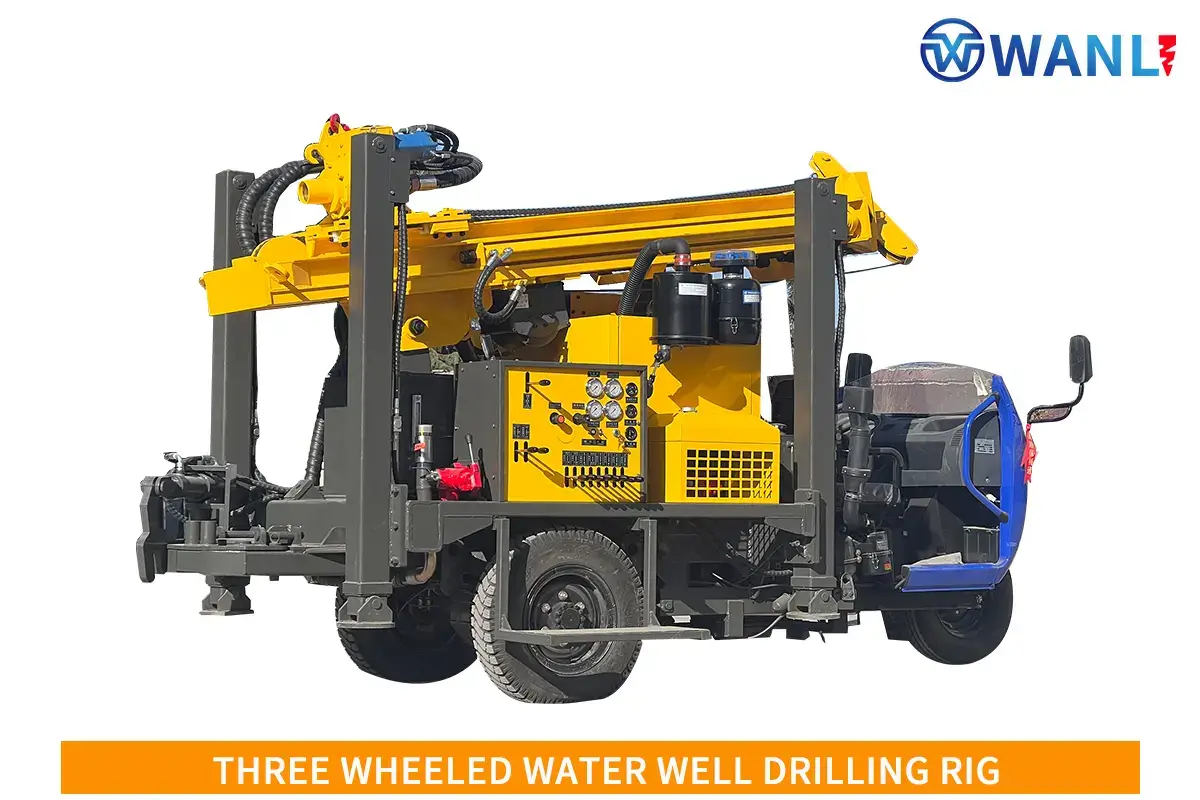

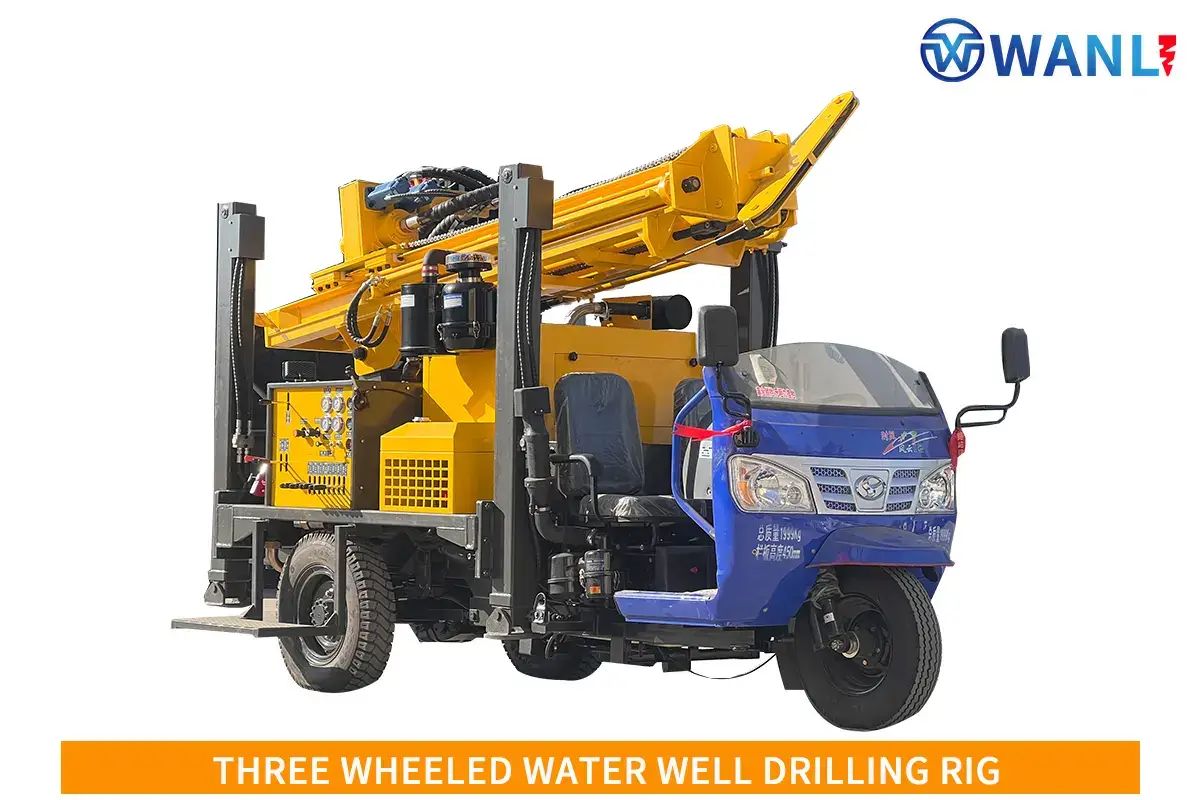

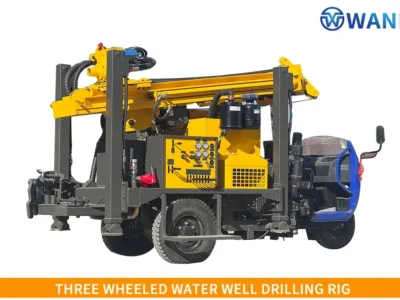

Three Wheeled Water Well Drilling Rig
Get a QuoteRelated products
-

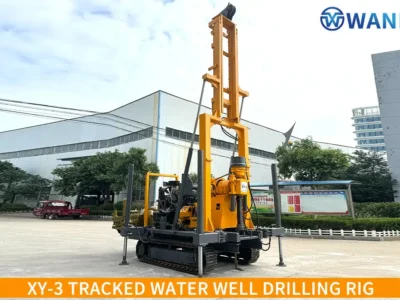

Water Well Drilling RigXY-3 Tracked Water Well Drilling Rig
-
