| PRODUCT PARAMETERS | |||
| Usage | Water Well | Type | water well drilling rig |
| Drilling Depth | Max.200 | Drilling Diameter | 100/120/140/150/180/250/325mm |
| Power Type | Diesel | Voltage | 24V,220V Electrical Equipment |
| Core Components | Motor, Pump, Gear, Bearing Engine |
Warranty | 1Year |
| Machinery Test Report |
Provided | Video outgoing- inspection |
Provided |
| Key Selling Points | Low-effort,high-efficiency | Place of Origin | Shandong, China |
| Weight | 3000 KG | Brand Name | XINWANLI |
| Dimension(L*W*H) | 3.3*1.55*2.2 | Mobility | Four-wheel drive |
| Drill depth(m) | 200 | Overall weight(t) | 3 |
| Maximum drilling diameter(mm) |
100-325 | Tractor horsepower(hp) |
50 |
| Lift force(t) | 14 | Maximum progress(m) |
2.4 (2 meters per drill pipe) |
| Maximum turning torque |
4500-6000 | Maximum rotation speed(rpm) |
70-140 |
| Recommendeddrill pipe diameter(mm) |
60/76/89 | Transportation dimensions: L*W*H(m) |
3.3*1.55*2.2 |

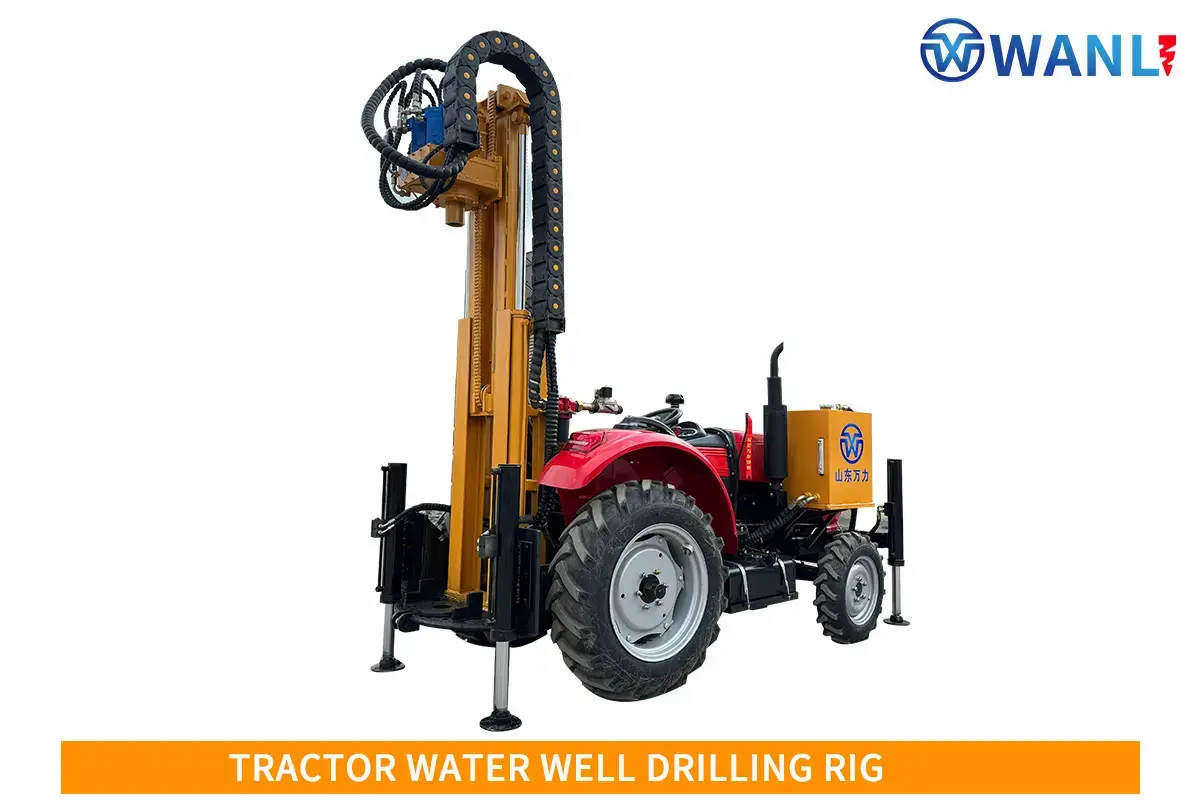

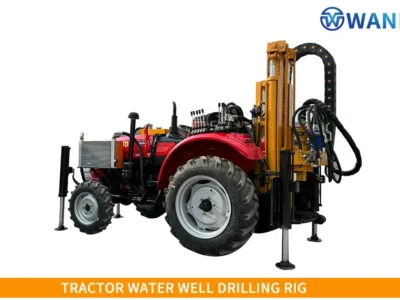

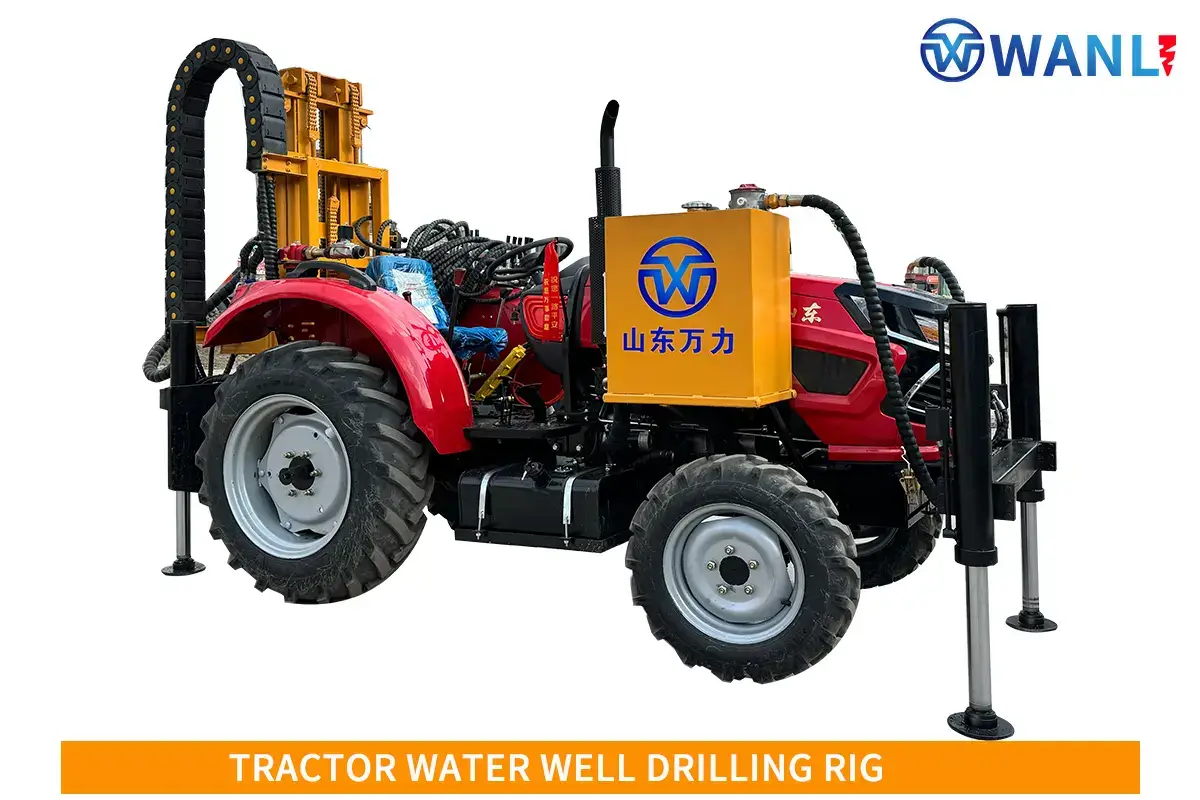

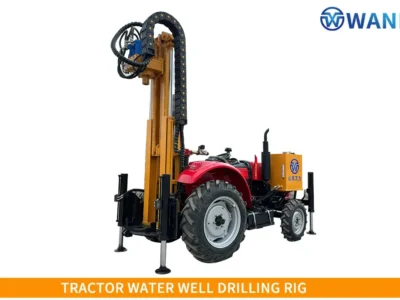

Tractor Water Well Drilling Rig
Get a QuoteRelated products
-

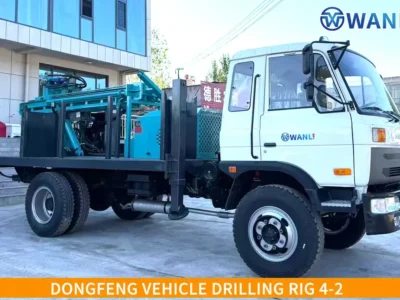

Vehicle-Mounted Drilling RigDONGFENG Vehicle Drilling Rig 4-2
-
Water Well Drilling RigWheeled water well drill
-

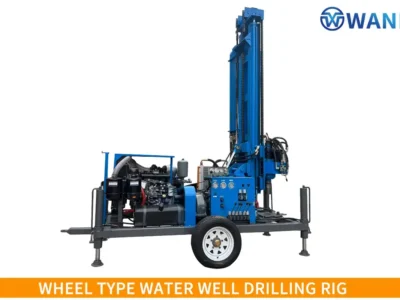

Water Well Drilling RigWheel Type Water Well Drillling Rig
-

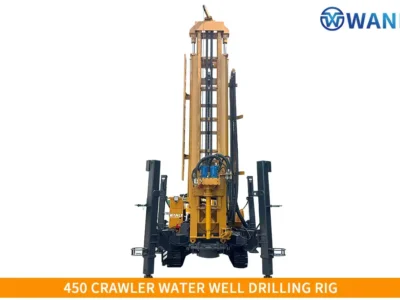

Water Well Drilling Rig450 Crawler Water Well Drilling Rig
