| PRODUCT PARAMETERS |
| Supporting Power |
Yuchai |
| Rated Power |
78KW |
| Drilling Diameter |
90-152MM |
| Depth Of Economical Drilling |
30M |
| Drilling Rod |
Composed of 64mm*2000mm+64mm*3000mm |
| Inches/Dth Hammer |
3″/4* |
| Working Pressure |
0.8-1.6 MPA |
| Air Consumption |
9-15 M3/MIN |
| Rotary Torque(Max.) |
2400 N.M |
| Rotary Speed |
0-150 R/MIN |
| Method Of Feed |
Hydraulic cylinder+chain |
| Travelling Speed |
0-2 KM/H |
| Climbing Capacity |
30 |
| Groundclearance |
450MM |
| Weight |
4800 KG |
| Outer Dimensions |
5700X2100X2300MM |
| Drilling Hardness |
F-6-20 |
| Nolume Of Diesel Oil Tank |
70L |
| Leveling Angle |
士10° |

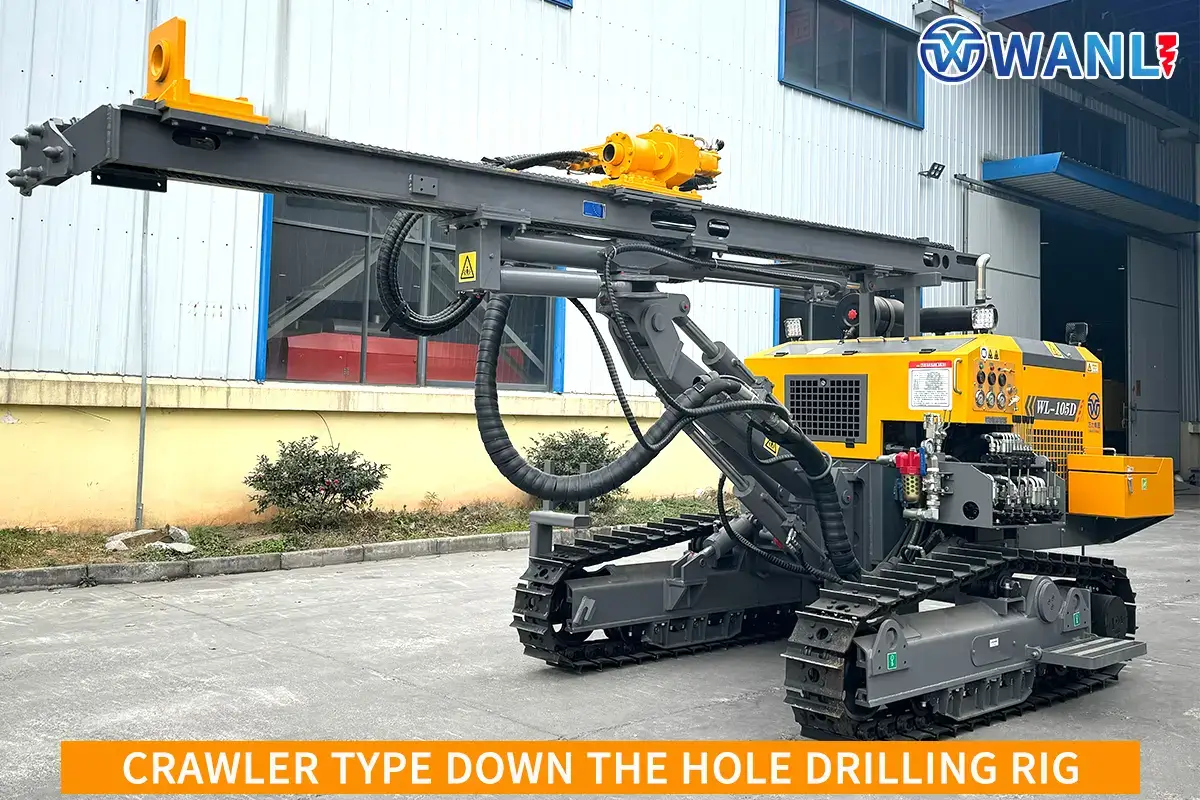

Down-the-Hole Drilling Rig

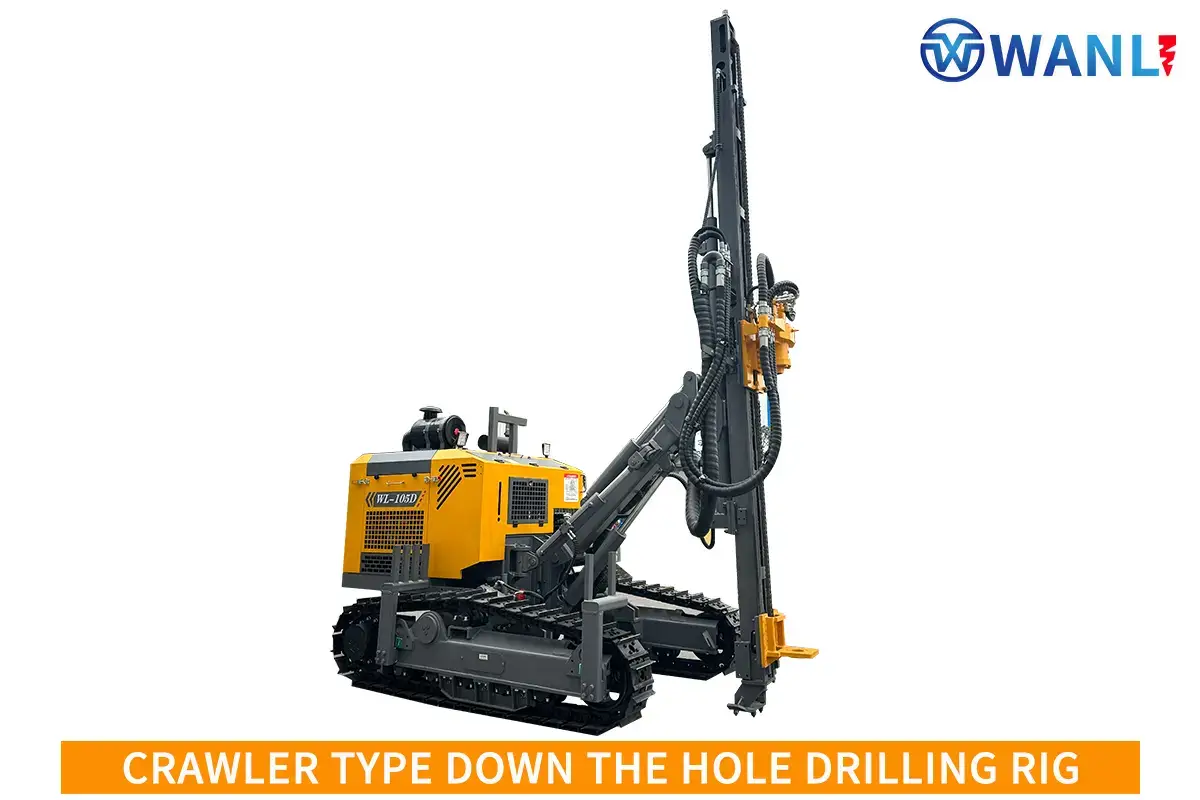

Down-the-Hole Drilling Rig

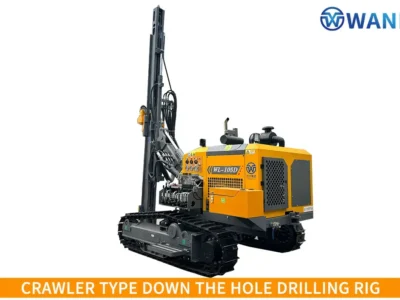

Down-the-Hole Drilling Rig

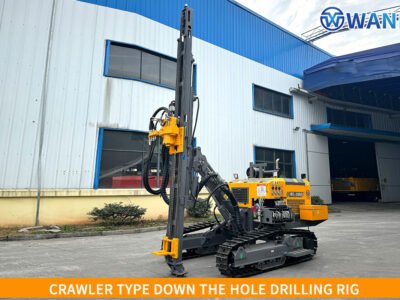

Down-the-Hole Drilling Rig
