| PRODUCT PARAMETERS | |
| Model | WL500 |
| Engine | 4108 Yuchai |
| Engine Power | 91KW |
| Hydraulic Hammer Model | 75/85/100 |
| Drilling Depth | 5M |
| Drilling Diameter | 100-400MM |
| Radiator | High-speed radiator |
| Power Head | Five-star motor power head |
| Drilling Speed | 0-120R/MIN |
| Maximum Torque | 8000-18000N.M |
| Oil Pump | 40/40 |
| Hydraulic Working Pressure | 20MPA |
| Type Speed | 1-20H |
| Tracks | 400MM |
| Boom | Hydraulic cylinder adjustment |
| Pressure System | Hydraulic motor |
| Travel Motor | TM10 |
| Turntable | 360° |
| Overall Weight | 7500KG |

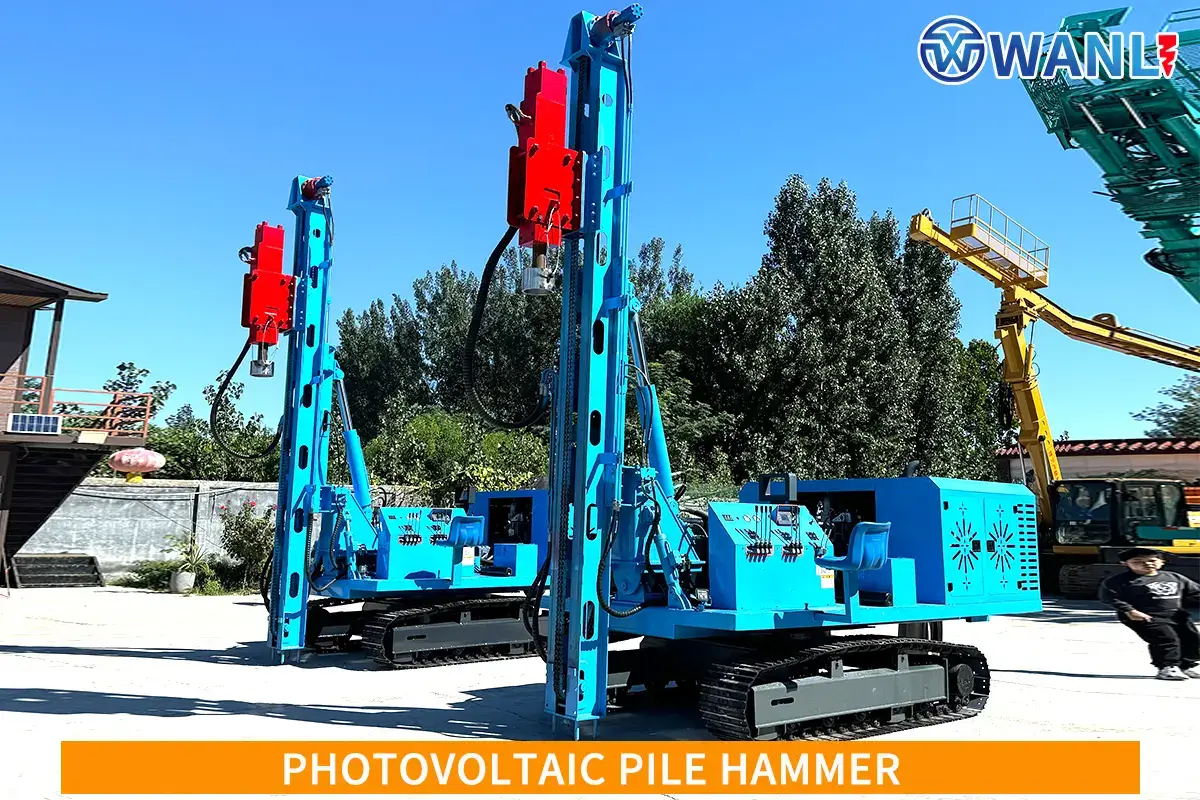

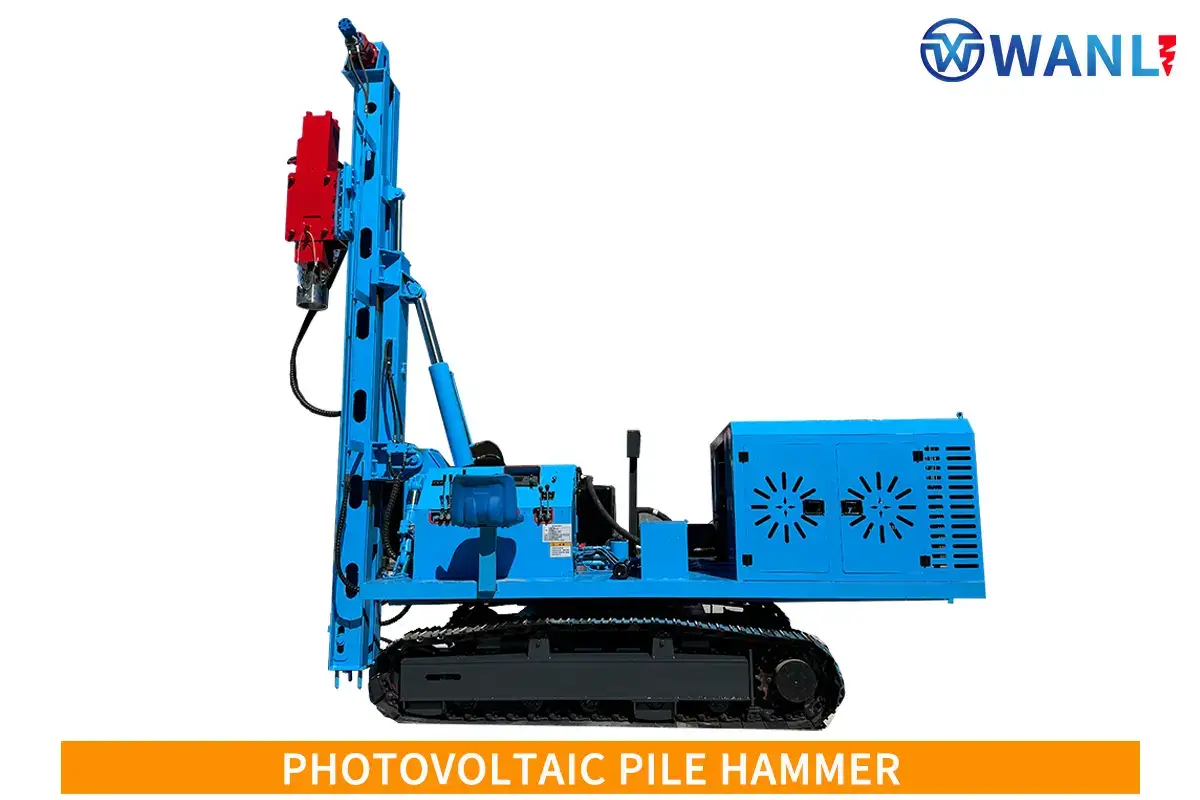

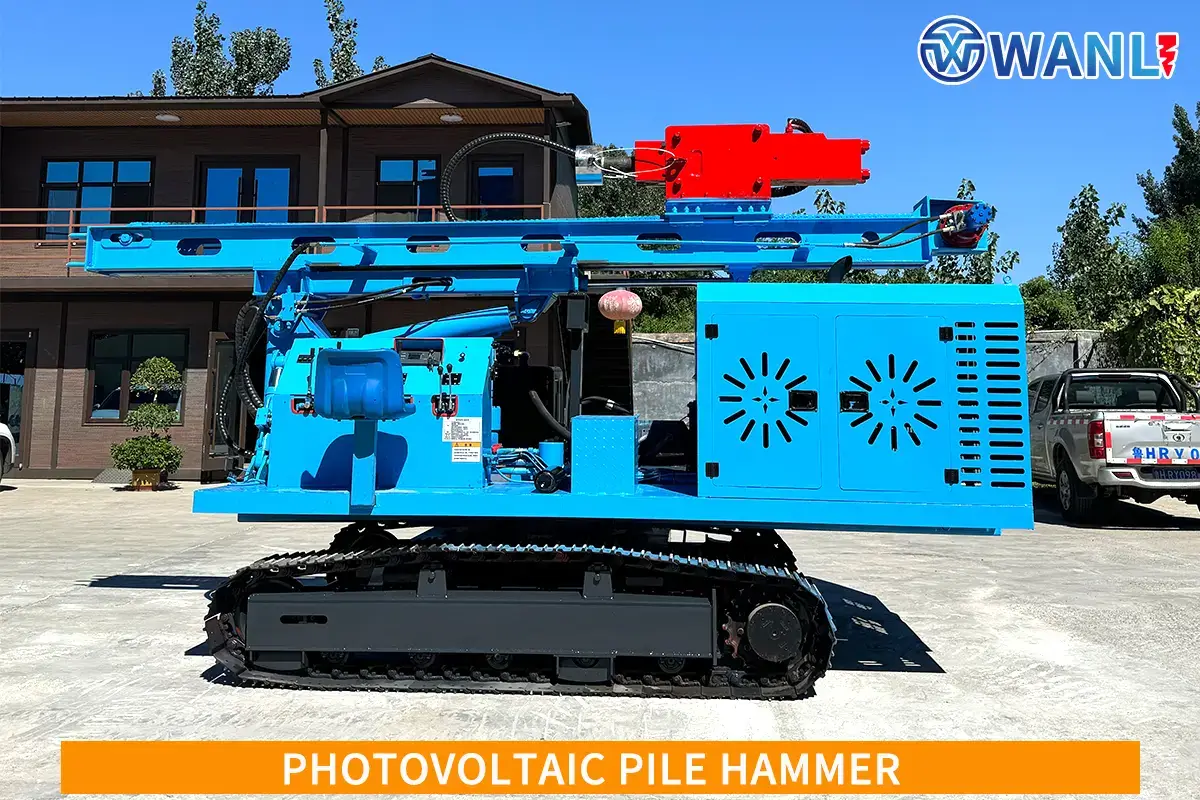

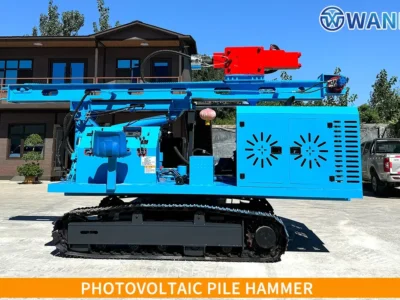

Photovoltaic Pile Hammer
