| Usage | Ore | Type | Down-the-hole drill |
| Drilling Depth | Max.30m | Drilling Diameter | 40 mm, 70 mm, 120 mm |
| Power Type | Diesel | Voltage | 220 V |
| Core Components | Engine, Bearing, Pump, Motor | Warranty | 1 Year |
| Machinery Test Report | Provided | Video outgoing-inspection | Provided |
| Key Selling Points | Newly designed multifunctional | Place of Origin | Shandong, China |
| Weight | 15500 KG | Brand Name | WANLI |
| Dimension(L*W*H) | 11200 mm*2480 mm*3100 mm | Mobility | 3.0 km/h |
| Feed travel length | 5.300 mm | Feed extension | 1.200 mm |
| Feed length | 8.570 mm | DTH hammer | 5″/4″ |
| Feed force max | 15kN | Feed rate max | 0.85 m/s |
| Pull up force max | 31 kN | Rotation torque | 4,000 Nm |
| Rotation rpm | 0-105 rpm | Fuel tank capacity | 480 L |

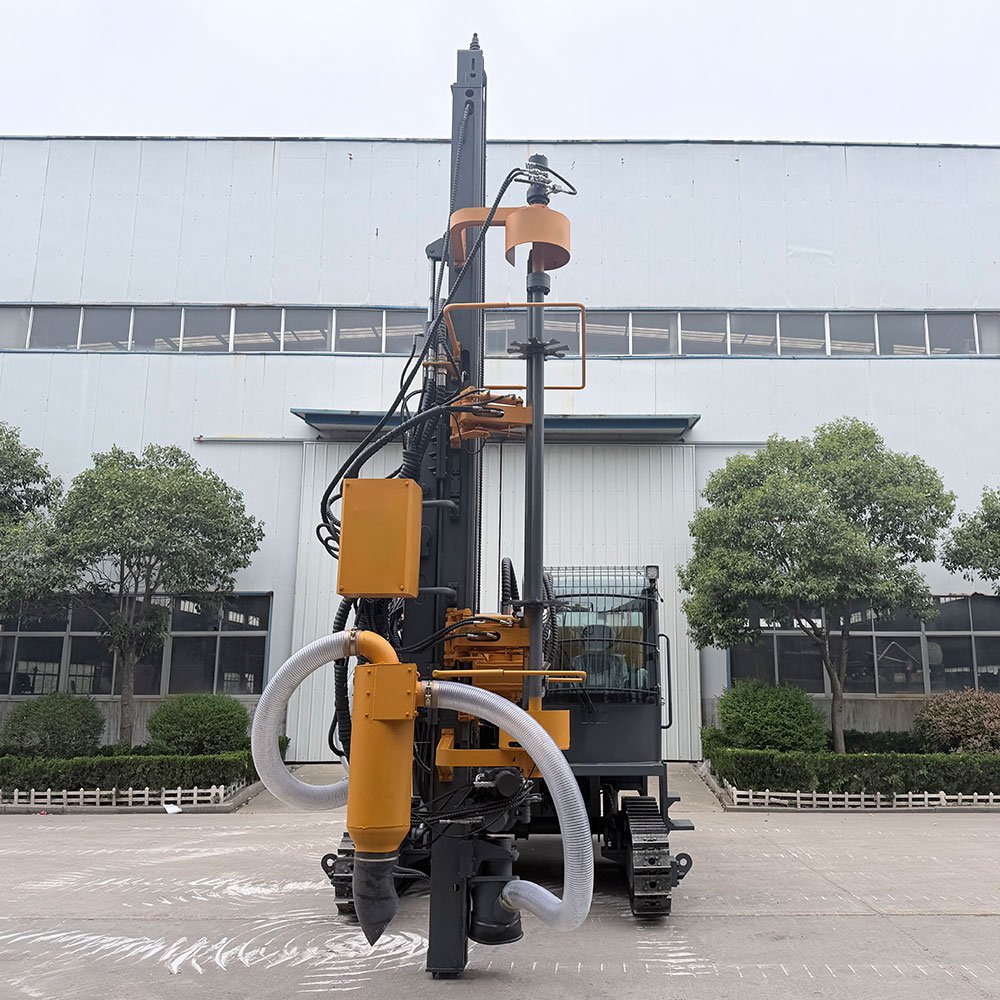

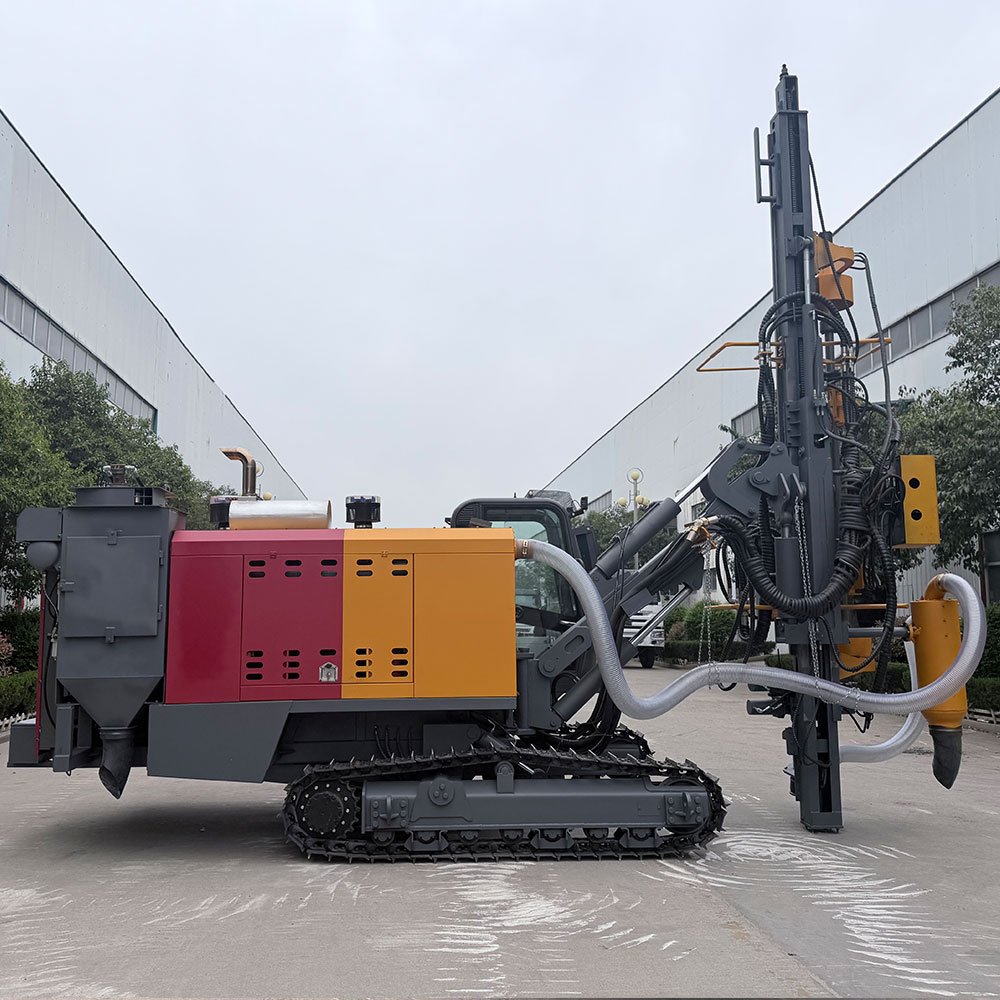

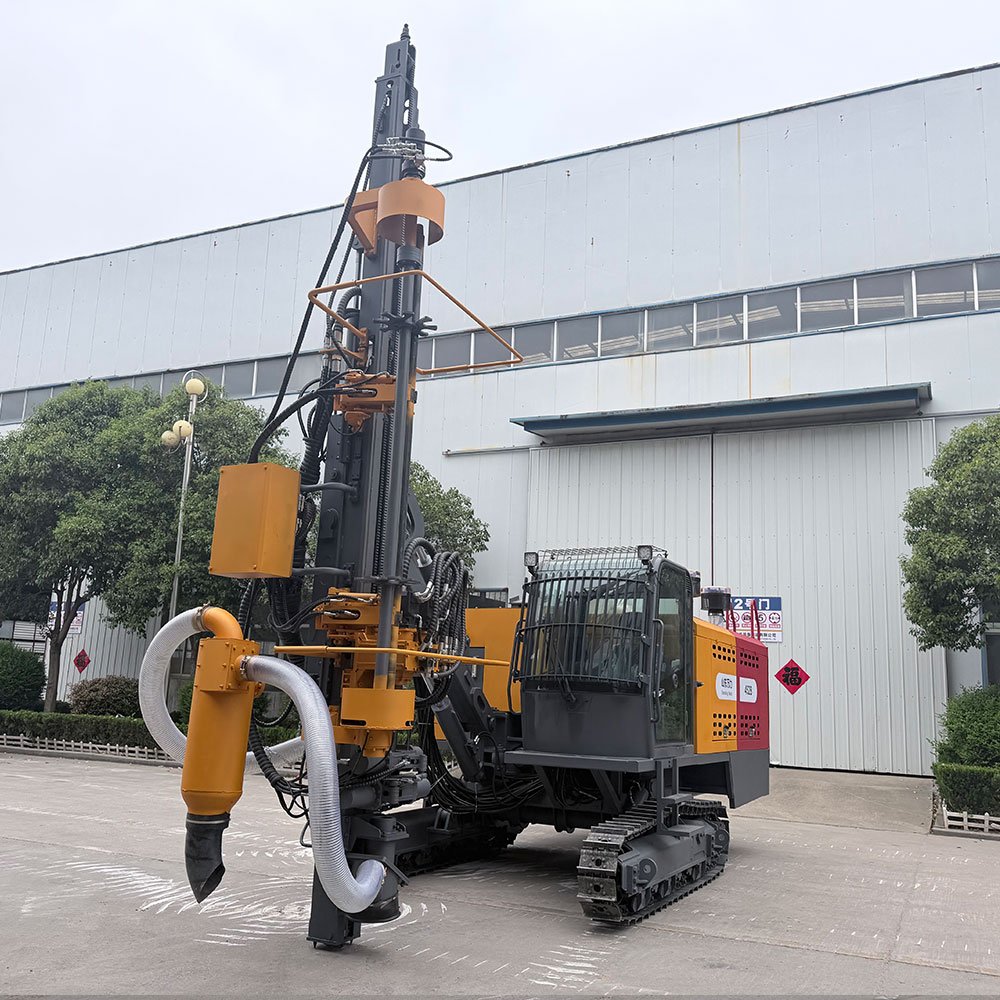

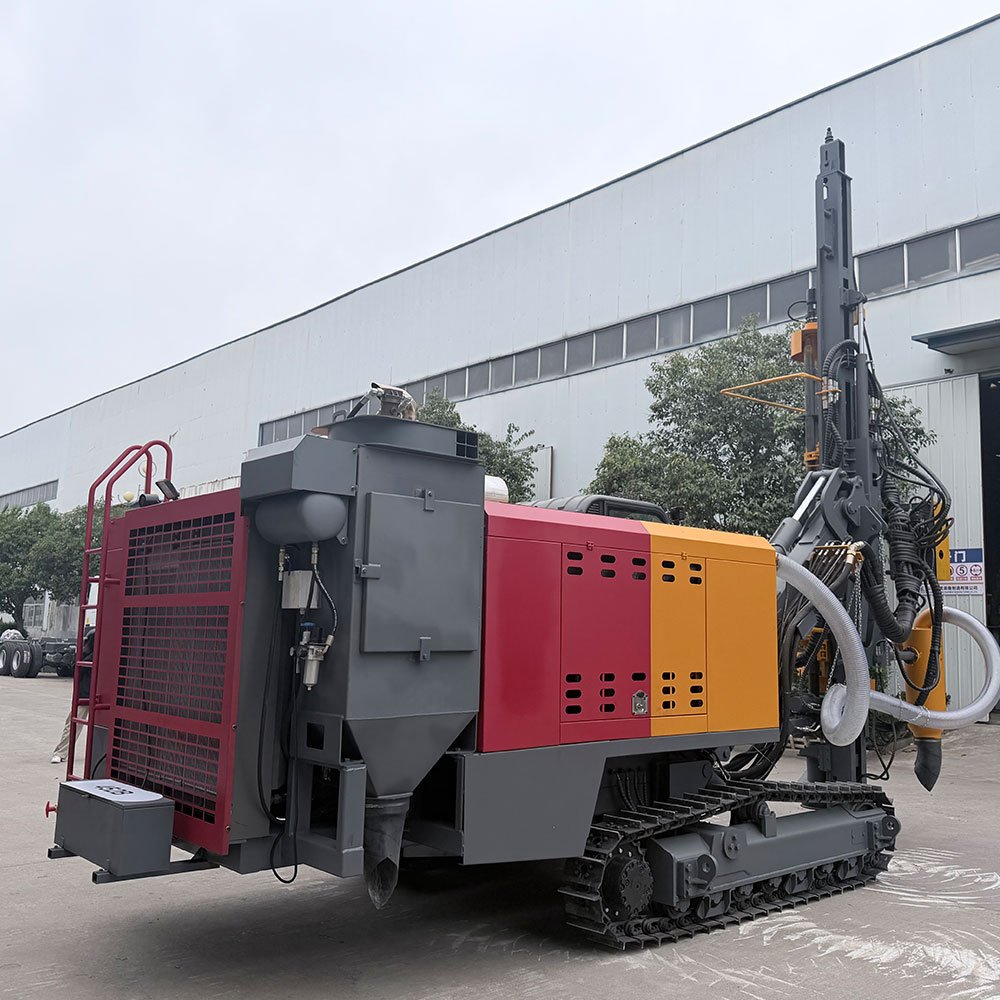

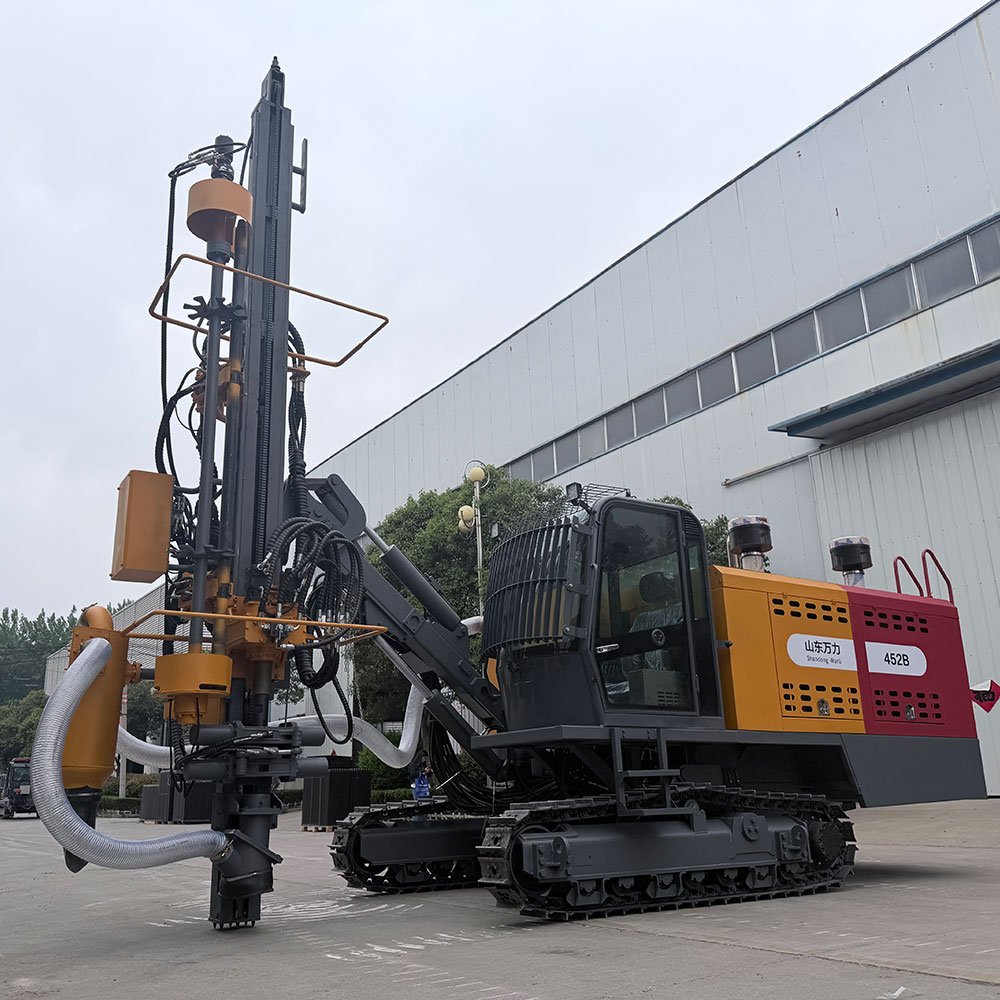

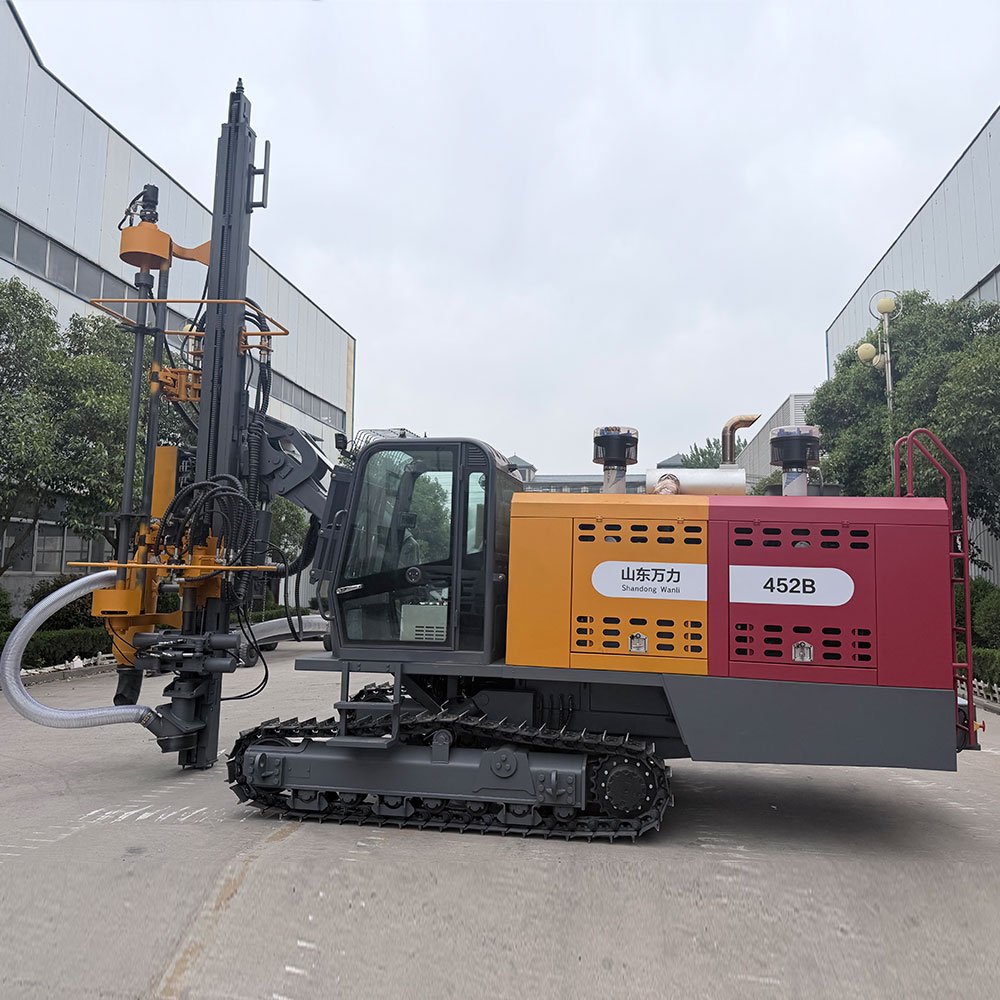

Integrated automatic down the hole drilling rig
