| PRODUCT PARAMETERS |
| Model |
Small Tracked Hydraulic Down-the-Hole Drill Rig |
| Power |
Diesel 25HP, Hydraulic Pneumatic Type |
| Chassis |
Engineering Rubber Track Chassis |
| Drilling Diameter |
8-30CM |
| Suitable Rock Type |
Medium-hard rock (f=8-16) |
| Air Consumption |
6 m²/MIN |
| Drilling Speed |
F=8-12···100-200MM/MIN |
| Travel Speed |
7-15 KM/H |
| Travel Mode |
Tracked Gearbox |
| Cooling Method |
Hydraulic Radiator |
| Winch Power |
Fully Hydraulic |
| Depth |
1-30Ｍ |
| Pressure System |
Hydraulic Cylinder Chain Forcing |
| Carriage Stroke |
2.6 m (customizable) |
| Weight |
830 KG |
| Oil Pump |
Single Pump |
| Machine Dimensions |
215/106/200CM |

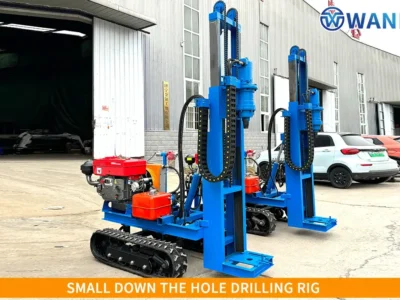

Down-the-Hole Drilling Rig

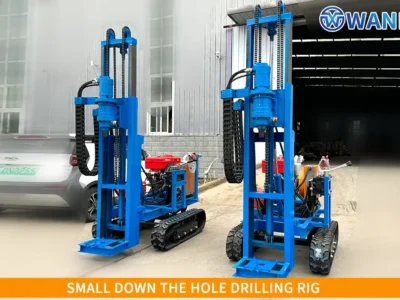

Down-the-Hole Drilling Rig

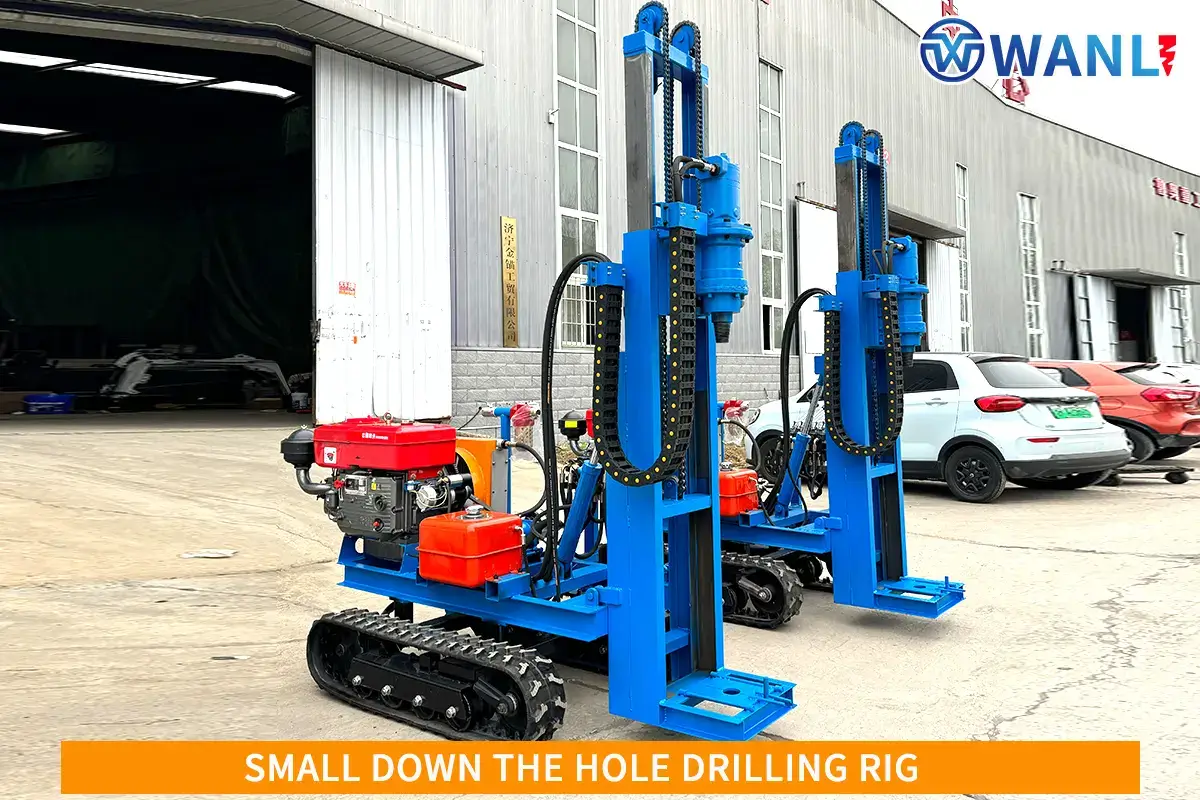

Down-the-Hole Drilling Rig

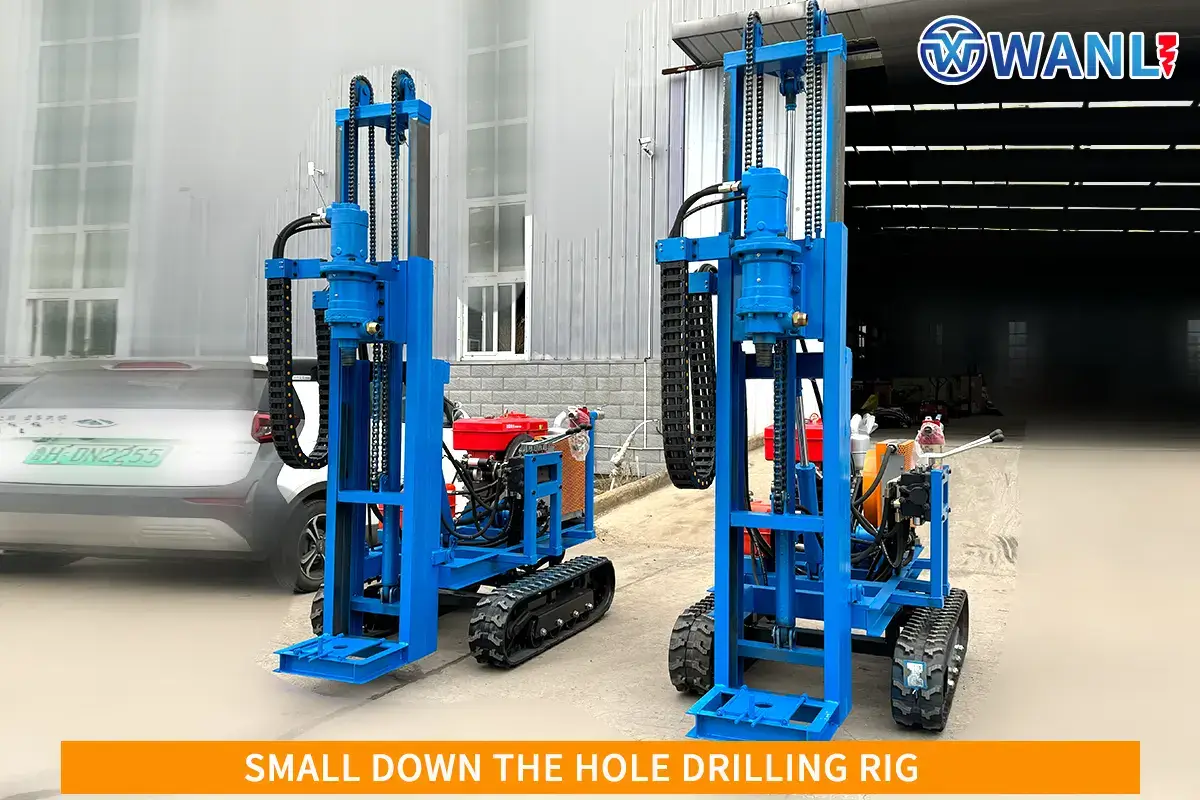

Down-the-Hole Drilling Rig
