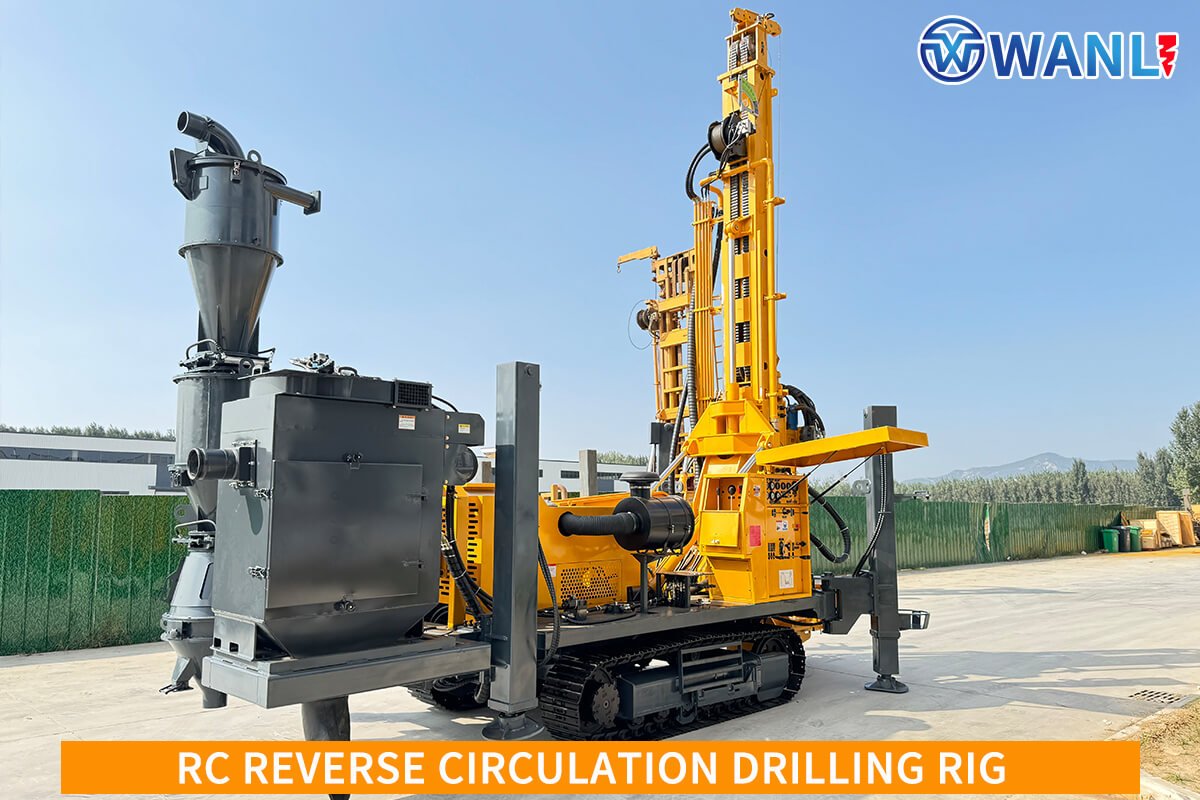

RC Reverse Circulation Drilling Rig

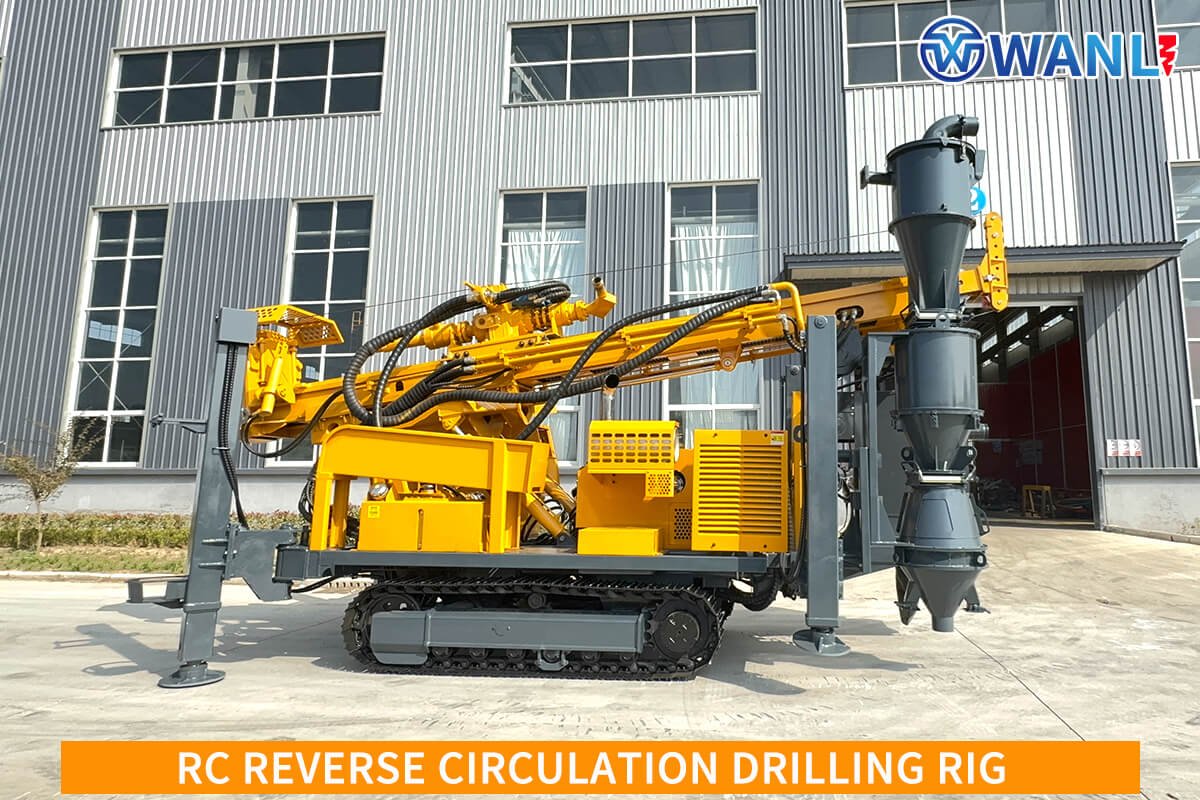

RC Reverse Circulation Drilling Rig - Image 2

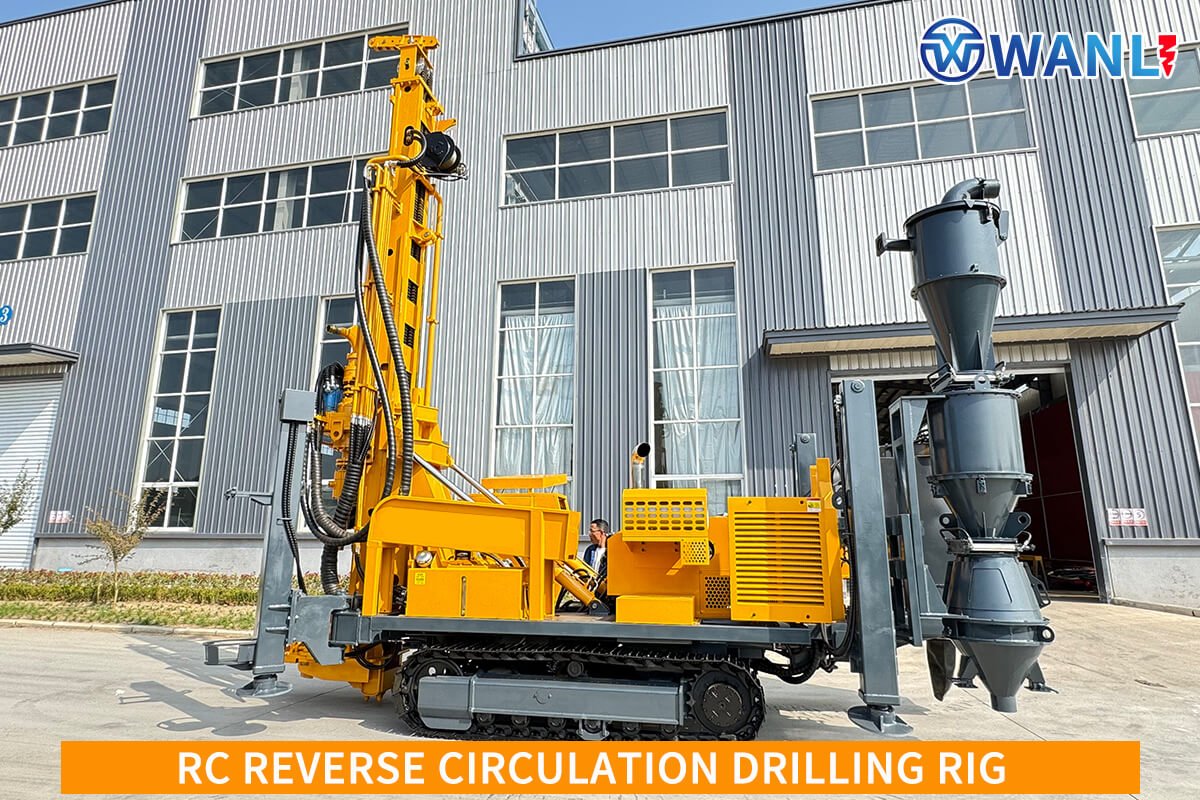

RC Reverse Circulation Drilling Rig - Image 3

RC Reverse Circulation Drilling Rig

Full hydraulic drive, high-efficiency slag discharge by reverse circulation, fast hole forming with smooth walls;
Suitable for cobble, gravel and other complex formations, stable for deep hole drilling;
Crawler chassis for flexible relocation, easy operation with full protection, customizable, direct factory supply with worry-free after-sales!

Category:
Get a Quote
PRODUCT PARAMETERS
Drilling Depth 500-1000M Drill hole diameter 100-300MM
Working Pressure 1.5-3.5MPA Air consumption 17-42m³
Drill Rod Length 3M Drill rod diameter 89/102/114
Power Head Pressure 7T Lifting force 28T
Lifting Speed 23M/MIN Rapid advance 33M/MIN
Maximum Torque 8500-11000NM Precipitation speed 40M/MIN
Engine Cummins 153KW Maximum slewing speed 40-140r/MIN
Outrigger Stroke 1.7M Small winch lifting force 2T
Travel Speed 2-4KM Cutting footage efficiency 15-35 M/H
Weight 12T Climbing ability 30°
Adaptability loose layer, bedrock Overall dimensions 6.8*2.1*2.8M
Impactor Medium-high wind pressure Drilling rig type Rotary
