A crawler core drilling rig is a self-propelled, track-mounted exploration machine that combines full hydraulic power head drive with a walking crawler chassis, designed to retrieve continuous rock cores in hard-rock mineral exploration, geotechnical investigation, and geological survey projects. For procurement managers and project engineers evaluating such equipment, the core question is not merely “what does it cost” but “how much non-productive time, core recovery loss, and site relocation delay will this rig save across its service life.” Our Full Hydraulic Core Drilling Rig is engineered precisely around that total cost of ownership lens.
Defining the Crawler Core Drilling Rig
A crawler core drilling rig integrates three subsystems:
- Crawler chassis: Steel track plates (often with optional rubber blocks) driven by hydraulic motors and built-in travelling reducers, enabling self-movement across rough terrain without auxiliary trailers.
- Full hydraulic power head: Piston motor with mechanical gear shifting, delivering wide-range speed control and high torque at the low-speed end.
- Integrated feeding/lifting system: Single or dual hydraulic cylinders driving the rotation head through a chain multiplication mechanism, providing long feeding travel and high lifting force for deep-hole wireline coring.
According to the SD series product documentation, these rigs are “lightweight, efficient, mast-touching, fully hydraulic crawler-mounted core drilling rigs designed for deep core drilling in a depth range of 200-2000 m,” with BTW, NTW, and HTW diameter compatibility. The same source notes that the coring recovery rate is higher and non-productive time is greatly reduced compared with conventional mechanical drill rigs.
Why Engineering Teams Prioritize Hydraulic Stability
The 2024 conference paper Coupled Dynamics Modeling and Analysis of a Coring Drilling Equipment for Hard-Rock Tunnel Boring (published in Springer’s Lecture Notes in Mechanical Engineering) provides critical insight into why full hydraulic design matters. The authors’ mechanical-hydraulic co-simulation revealed that “the system has a large impact during the start-up phase, and the hydraulic system pressure fluctuates substantially,” with a maximum system pressure of 33 MPa—comfortably below the variable pump’s 35.6 MPa cut-off. Most importantly, the study confirmed that “the maximum torque of the drilling tool can reach 142 Nm, which can realize high-hardness rock coring drilling.” This validates that properly engineered full hydraulic systems can reliably deliver the torque needed for hard-rock formations.
A complementary study on crawler drilling rigs in underground coal mines—Research on the design and application of an auxiliary stabilization device for crawler drilling rigs published in Extrica—highlights another procurement-critical factor: stability. The paper notes that “insufficient stability of crawler drill rigs during construction under complex geological conditions” directly constrains “drilling efficiency and safety,” and that a well-designed stabilization system can “significantly reduce the drilling trajectory deviation.” For surface crawler core drilling rigs operating on uneven terrain, this same principle applies: track surface area, hydraulic leveling, and mast rigidity determine hole straightness and core quality.

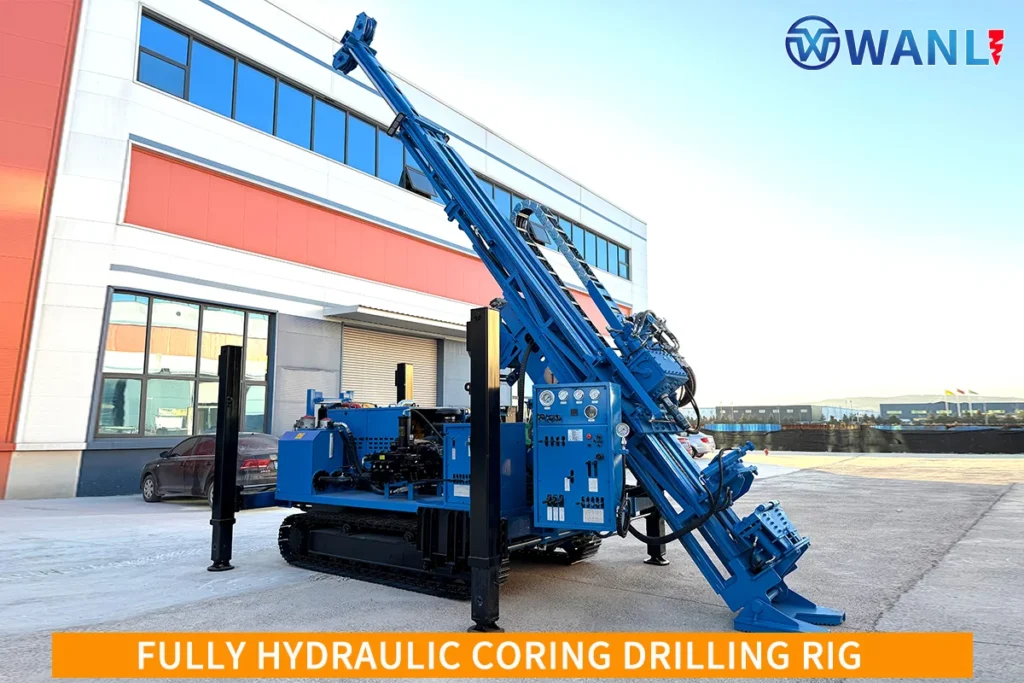

Technical Profile: Our Full Hydraulic Core Drilling Rig
Our Wanli Full Hydraulic Core Drilling Rig delivers:
- Full hydraulic drive with high torque and stable speed for high coring precision
- Excellent core recovery rate, suitable for hard rock and geological exploration conditions
- Multiple safety protections and customizable configuration
- Direct factory supply with comprehensive after-sales support
- Easy operation, reducing operator labor intensity
Typical SD-series configurations (representative of our product line’s capability range) include:
- Drilling depth: BQ 1000-2500 m, NQ 600-2000 m, HQ 400-1400 m, PQ 200-1100 m depending on model
- Power head torque: Up to 4263 Nm (high-end models)
- Rotation speed: 145-940 rpm or 1120-448 rpm depending on gearing
- Engine: Cummins 6CTA8 / 6BTA5.9 series, 132-180 kW
- Total weight: 11,000-16,000 kg
Commercial Comparison Table 1: Market Price & Depth Positioning
| Product (Supplier) | Price (USD) | Max Depth | Key Attribute | Source |
|---|---|---|---|---|
| Crawler-type Core Drilling Rig (Henan Whirlwind) | $55,000+ | Not specified | Fully hydraulic engineering survey | Accio |
| ROCK-300C Crawler Portable Hydraulic Core (Sichuan Nock) | $38,600 | Moderate | Crawler-mounted, diamond core | Accio |
| 800m Full Hydraulic Diamond Core Rig (Shandong Wogong) | $19,999-29,999 | 800m | Tracked, full hydraulic | Accio |
| SPT Hydraulic 1200m Geotechnical Rig (Mengyin Feida) | $19,999-39,999 | 1200m | SPT, geotechnical focus | Accio |
| KP-1200 Diamond Core Rig (Yantai Kapuro) | $57,223-59,467 | High | Tracked mineral drilling | Accio |
| Full Hydraulic Core Drilling Rig (Wanli) | Contact for quote | BQ 1000-2500m / NQ 600-2000m | High torque, customizable, factory-direct | Wanli |
Sources: Accio Crawler Mounted Drilling Rig Marketplace, Accio Drilling Samples Marketplace, Wanli Full Hydraulic Core Drilling Rig
Commercial Comparison Table 2: Technical Configuration Benchmark
| Parameter | SD1000 (representative) | SD-2000 (high-end) | Runli RL1000 (competitor) | Source |
|---|---|---|---|---|
| BQ drilling depth | 1000m | 2500m | 1200m | SD1000 / SD-2000 / Runli |
| NQ drilling depth | 600m | 2000m | 1000m | SD1000 / SD-2000 / Runli |
| Max torque | 3070 Nm | 4263 Nm | 3000 Nm | SD1000 / SD-2000 / Runli |
| Max rotation speed | 940 rpm | 1120 rpm | 0-1100 rpm | SD1000 / SD-2000 / Runli |
| Lifting force | 70 KN | 200 KN | 400 KN | SD1000 / SD-2000 / Runli |
| Total weight | 11,000 kg | 16,000 kg | 10,000 kg | SD1000 / SD-2000 / Runli |
| Engine power | 132 kW | Cummins 6CTA8 | Not disclosed | SD1000 / SD-2000 / Runli |
Sources: SD1000 Crawler Type Full Hydraulic Core Drilling Rig; SD-2000 Full Hydraulic Core Drilling Rig; Runli Crawler Mounted Fully Hydraulic Core Drilling Rig
Commercial Comparison Table 3: Feature & Service Comparison
| Feature | Wanli Full Hydraulic Core Drilling Rig | Typical Competitors | Source |
|---|---|---|---|
| Drive type | Full hydraulic, high torque | Mixed (some mechanical top-drive) | Wanli/Rancheng Guide |
| Crawler chassis | Steel tracks, hydraulic motor, self-climbing onto flatbed | Varies; some require crane loading | SD series / Rancheng |
| Core recovery | High, optimized hydraulic feeding with back-pressure balancing | Varies by model | Wanli / SD-2000 spec |
| Safety protections | Multiple built-in | Entry-level models lack comprehensive protection. | Wanli |
| Customization | Available per project geology | Limited on standard models | Wanli |
| Supply model | Factory-direct with full after-sales | Mostly distributor-mediated | Wanli |
| Certifications | CE-compliant, ISO-aligned manufacturing | Varies (CE, ISO claimed by some) | Rancheng / FCCS |
Sources: Wanli Full Hydraulic Core Drilling Rig; Rancheng Core Drilling Rig Selection Guide; FCCS Crawler Mounted Drill Rig
Application Fit Across Project Types
Per Rancheng’s Core Drilling Rig Selection Guide, crawler-type full hydraulic core drilling rigs are the workhorse for:
- Solid mineral exploration—Where steel crawler chassis ensures cross-country capability and stability
- Engineering geology — Foundation investigation, dam grouting, tunnel ventilation
- Shallow oil & gas / groundwater—Where PQ/HQ/BQ/NQ cores must be extracted
- Geotechnical site investigation—Paired with SPT capability for composite soil-rock profiles
The guide specifically notes that “full-hydraulic drive delivers high drilling efficiency and easy operation, reducing labor intensity and maintenance costs”—a direct operational advantage validated by field deployments.
How the Full Hydraulic System Delivers ROI
The engineering economics are straightforward. Per the Springer hard-rock coring study, a properly simulated full hydraulic system maintains pressure below pump cut-off even during high-impact start-up phases. This translates to:
- Less downtime: Hydraulic systems with mature rotation head units, clamps, and winches reduce manual intervention
- Higher core recovery: Stable feeding pressure (via back-pressure balancing technology) increases bit life and core integrity
- Faster cycle times: Rapid lifting speeds (up to 45 m/min) and high-speed wireline winches (up to 205 m/min) slash auxiliary time
- Lower transport cost: Self-climbing crawler eliminates flatbed truck loading cables
For a mid-scale exploration contractor running 3-4 drill sites per year, these efficiencies compound into meaningful annual savings on labor, fuel, and equipment wear.
Global Market Context for Procurement Teams
The crawler-mounted drilling rig market in 2025 was valued with mining at 59.80% (USD 5.04 billion), construction at 24.92% (USD 2.10 billion), and quarrying at 15.27% (USD 1.29 billion). Buyers in these segments face “cost pressure” from tariffs on imported steel (adding ~2.1% to onshore well costs) and are increasingly scrutinizing “total installed cost and supply-chain resilience.” This validates the case for sourcing directly from a manufacturer with in-house production, comprehensive after-sales, and customization capability—exactly the model our Full Hydraulic Core Drilling Rig program is built on.
FAQ
Q1: What is a crawler core drilling rig in simple terms?
A: It is a track-mounted, self-propelled drilling machine that uses a full hydraulic power head to extract continuous rock core from the ground. The crawler chassis allows it to move independently across rough terrain, while the hydraulic system delivers the high torque and stable feeding pressure needed for hard-rock coring.
Q2: How deep can a crawler core drilling rig drill?
A: Depth capacity depends on core barrel size. Representative full hydraulic crawler models achieve BQ 1000-2500m, NQ 600-2000m, HQ 400-1400m, and PQ 200-1100m. Your actual achievable depth depends on formation hardness, mud system, and engine power.
Q3: Why choose a full hydraulic drive over a mechanical top drive?
A: Full hydraulic drive, as confirmed by coupled dynamics research, can deliver “high-hardness rock coring drilling” with maximum drilling tool torque reaching 142 Nm in simulated hard-rock conditions, while maintaining system pressure within safe limits. It also reduces labor intensity, centralizes controls, and enables easier handling of downhole incidents.
Q4: What torque do I need for hard-rock exploration?
A: For hard-rock formations, the Springer study validates that 142 Nm drilling tool torque is sufficient for high-hardness rock coring at the equipment level. Production-scale rigs in our lineup deliver power head torque from 3070 Nm (mid-range) up to 4263 Nm (deep-hole models), providing ample margin for BQ-NQ wireline coring in granite, basalt, and metamorphic sequences.
Q5: How important is crawler stability?
A: Critically important. Research from Xi’an Research Institute shows that insufficient crawler stability under complex geological conditions directly increases “drilling trajectory deviation.” Wide-track steel crawlers with hydraulic leveling and rigid mast-to-chassis contact (as implemented in the SD series) minimize hole deviation and improve core quality.
Q6: What after-sales support should I expect?
A: At minimum, factory-direct technical support, spare parts availability, on-site commissioning, and operator training. Our program includes comprehensive after-sales support with customizable configurations per your geological profile.
Q7: How does pricing compare across the market?
A: Entry-level crawler core rigs start around 38,600 (Rock−300C), mid-range 800−1200 m rigs span 19,999−39,999, and premium tracked mineral exploration rigs reach 55,000−59,467. Our Full Hydraulic Core Drilling Rig is quoted per configuration—contact us with your target depth, core barrel size, and site conditions for a transparent, factory-direct quotation.
Making the Procurement Case to Your Board
For exploration managers and procurement officers, selecting a crawler core drilling rig should be driven by three verifiable criteria:
- Engineering validity—Confirmed by peer-reviewed research showing full hydraulic systems can deliver stable, high-torque hard-rock coring performance
- Stability and core quality—Validated by coal mining drilling studies demonstrating that crawler stabilization directly reduces trajectory deviation
- Total cost of ownership—Evidenced by market data showing mining and construction buyers increasingly prioritize supply-chain resilience and total installed cost over lowest upfront price
Our Full Hydraulic Core Drilling Rig meets all three. With 12+ years of manufacturing expertise, customizable configurations, multiple safety protections, and direct factory support, it is positioned to deliver measurable ROI across multi-season exploration programs.
When your next exploration project calls for reliable core recovery in challenging terrain, understanding crawler core drilling rig selection criteria is only the beginning. The next step is matching your specific geology, target depth, and operational cadence to the right configuration.
To explore how our Full Hydraulic Core Drilling Rig would perform on your project parameters, visit our official product page at https://sdwanli.com/product/coring-drilling-rig/full-hydraulic-core-drill/. Our engineering team can prepare a customized specification sheet with projected penetration rates, recommended core barrel sizes, and a transparent factory-direct quotation. Reach out today, and let us help you calculate the exact productivity gain and cost-per-meter improvement this rig can deliver for your operation.
References
- Dong, Y., Sun, X., Hu, L., et al. (2024). Coupled Dynamics Modeling and Analysis of a Coring Drilling Equipment for Hard-Rock Tunnel Boring. Lecture Notes in Mechanical Engineering, pp. 3015-3034. https://link.springer.com/chapter/10.1007/978-981-97-1128-5_245
- Wu, Z., & Gao, X. (2026). Research on the design and application of an auxiliary stabilization device for crawler drilling rigs in underground coal mines. Extrica, https://www.extrica.com/article/25985
- Full Hydraulic Core Drilling Rig. Wanli Construction Machinery. https://sdwanli.com/product/coring-drilling-rig/full-hydraulic-core-drill/
- Crawler Type Full Hydraulic Core Drilling Rig SD1000. https://www.rigs.com.cn/en/product-81120-215623.html
- SD-2000 Full Hydraulic Core Drilling Rig. http://ip66ag.r11.35.com/en/product-81120-215624.html
- Crawler-Mounted Fully Hydraulic Core Drilling Rig (RL600-RL2000 series). Runli. https://runlidrillingrig.en.made-in-china.com/product/gJBUlQnKawYS/China-Customized-400-600-800m-Industrial-Hydraulic-Diamond-Core-Drilling-Rig-for-Geological-Exploration-Survey-Oilfield-Exploration-Wire-Rope-Core-Drilling-Rig.html
- Core Drilling Rig Selection Guide: Precision Equipment Matching for Your Exploration Projects. Rancheng Machinery. https://www.ranchenggroup.com/info/core-drilling-rig-selection-guide-precision-e-102946059.html
- Crawler-mounted drilling rig marketplace data. Accio. https://www.accio.com/plp/crawler-mounted-drilling-rig
- Crawler Mounted Drilling Rig Market 2025. PW Consulting. https://pmarketresearch.com/auto/brushless-unmanned-underwater-vehicle-thruster-market/crawler-mounted-drilling-rig-market
