Selecting the best drill bit for your coring rig is a decision that dictates the overall cost-per-foot and the quality of the core sample recovered. In geotechnical exploration and mineral drilling, the bit is the only component in direct contact with the formation. Choosing incorrectly leads to premature “polishing” of the diamonds, excessive vibration, or mechanical failure of the rig’s drive system.
To optimize performance, engineers must balance the mechanical properties of the rock formation with the metallurgical characteristics of the bit. This guide breaks down the selection process through the lens of material science and field application.
Understanding the Core Variables: Rock Hardness and Abrasiveness
The primary factor in bit selection is the Mohs scale of mineral hardness. However, hardness alone is insufficient for a technical decision. You must also evaluate “abrasiveness”—the ability of the rock to wear away the bit’s metal matrix.
Hard, Non-Abrasive Formations (e.g., Quartzite, Chert): These require a bit with a soft matrix that erodes quickly to expose new, sharp diamond layers.
Soft, Highly Abrasive Formations (e.g., Sandstone, Loose Shale): These require a hard, wear-resistant matrix to prevent the diamonds from falling out before they have finished their cutting life.
If the matrix is too hard for the formation, the diamonds will round off (polish), and the bit will stop cutting. If the matrix is too soft, the bit will wear down prematurely, leading to frequent “tripping” of the drill string to replace tools.
Impregnated vs. Surface-Set Diamond Bits
In modern coring, most professional operations utilize one of two primary diamond bit technologies. The choice depends on the specific requirements of the core sample and the capabilities of the coring drilling rig.
| Feature | Impregnated Diamond Bits | Surface-Set Diamond Bits |
| Construction | Diamonds mixed throughout a metal matrix | A single layer of diamonds set on the surface |
| Ideal Formation | Hard, competent, or fractured rock | Softer, sedimentary, or abrasive rock |
| Self-Sharpening | Yes (matrix erodes to reveal new diamonds) | No (once diamonds are dull, the bit is done) |
| RPM Requirements | High RPM (700 – 1200+) | Lower RPM (200 – 500) |
| Durability | High; resistant to “shock” in fractured zones | Lower; sensitive to vibration and high impact |

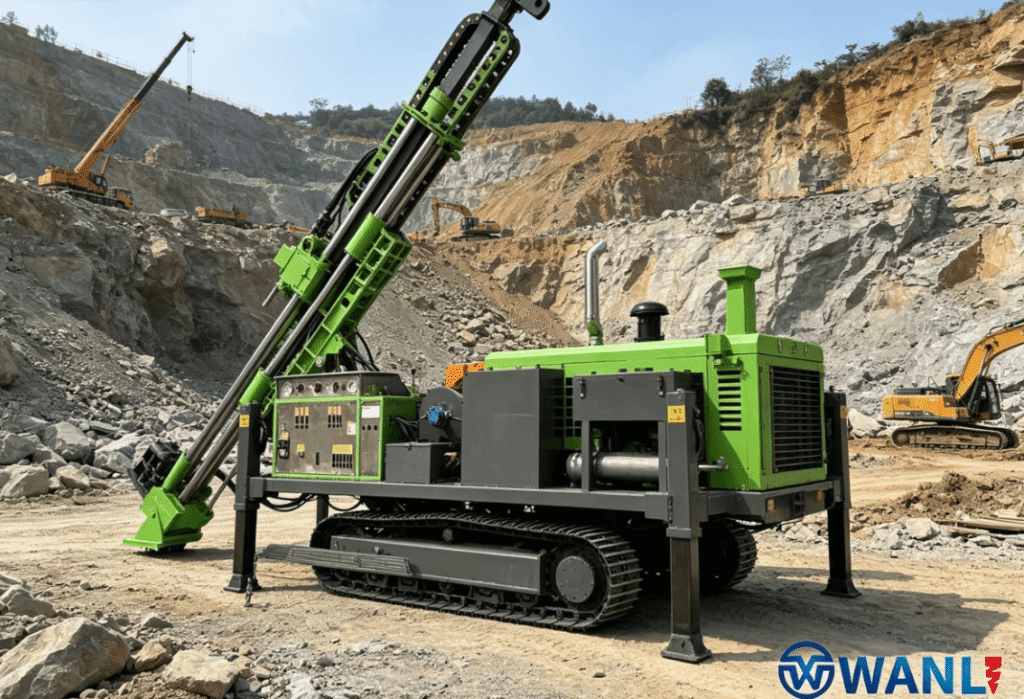

The Inverse Relationship of Matrix Selection
A common mistake in the field is assuming a “stronger” bit is always better. In diamond coring, we follow the Inverse Rule of Matrix Hardness:
Hard Rock (7-10 on Mohs scale): Use a Soft Matrix (Series 1-4). This ensures the matrix wears away at a rate that constantly “self-sharpens” the tool.
Soft Rock (1-3 on Mohs scale): Use a Hard Matrix (Series 10-15). This protects the bit from the high-velocity abrasive cuttings produced by softer stones.
Crown Profiles and Waterway Configurations
The geometry of the bit face—the “crown”—affects fluid dynamics and cooling. Since coring rigs generate significant heat at the bit-face, choosing the right waterway is critical for tool longevity.
Standard Waterways: Best for competent rock where fluid circulation is consistent.
Pie-Shaped (Pie-Cutter) Waterways: Ideal for soft, “sticky” formations where clay or mud might clog a standard bit. These allow for higher flow rates to flush out debris.
Discharge Ports: In extremely fragile or broken formations, “face discharge” bits direct the drilling fluid away from the core itself. This prevents the high-pressure water from washing away or damaging the core sample before it enters the inner tube.
Matching Bit Selection to Rig Specifications
Your coring rig’s mechanical limits define which bits are viable. When reviewing professional coring drilling equipment, pay attention to two specific parameters: Spindle Speed (RPM) and Feed Pressure (Weight on Bit).
High-speed hydraulic rigs are designed for impregnated bits, which require velocity to maintain the cutting action. Conversely, older or heavy-duty mechanical rigs with lower RPM ranges often perform better with surface-set or PDC (Polycrystalline Diamond Compact) bits, which rely on torque and “shearing” rather than grinding.
For geotechnical site investigations where you may encounter varying strata—from loose soil to hard bedrock—versatility is key. A rig that offers a wide range of RPM settings allows the driller to adjust the “glaze” or “open” status of the bit in real-time by varying the penetration rate.

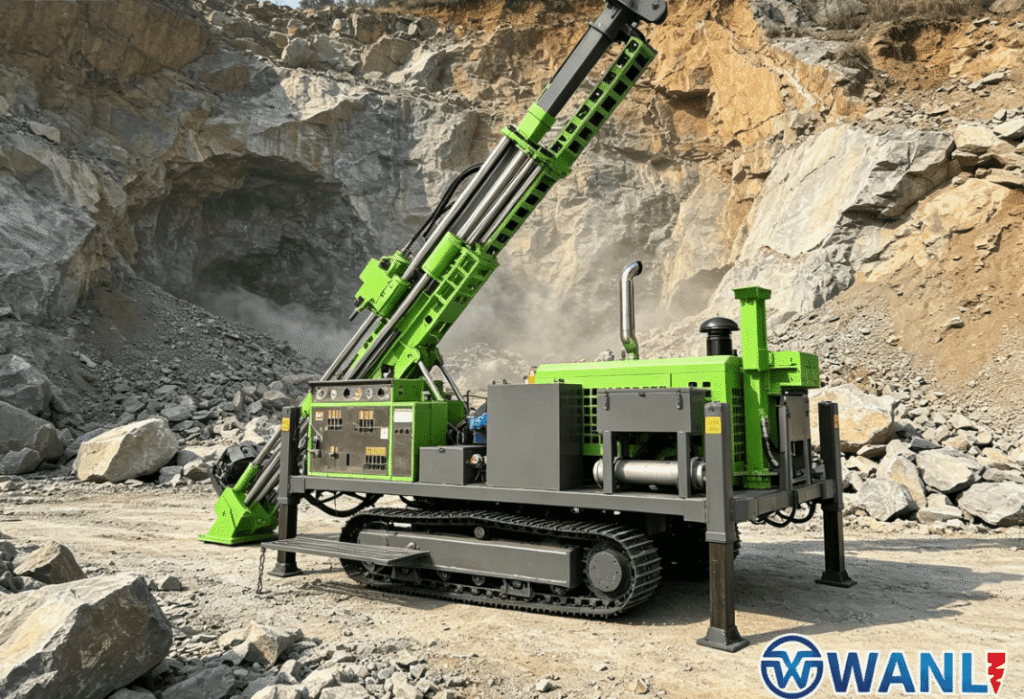

Troubleshooting Field Performance
If your coring rig is struggling to progress, analyze the bit’s “face” immediately upon extraction:
Polished Diamonds: The bit looks smooth or shiny. Solution: Increase feed pressure or switch to a softer matrix bit.
Burned Bit: The matrix shows blue/black discoloration. Solution: Increase water flow or reduce RPM; the tool is overheating.
Stripped Bit: Diamonds are gone, and only the steel shank remains. Solution: The matrix was too soft for the abrasive nature of the rock.
By aligning the metallurgical properties of the bit with the geological realities of the site and the mechanical capacity of your rig, you ensure higher core recovery rates and significantly lower operational overhead.
FAQ
Q1: How do I know if I need a Wireline or Conventional bit?
Wireline bits are part of a system that allows the core barrel to be retrieved through the center of the drill rods. This is the industry standard for deep holes (over 50m) because it saves time. Conventional bits are used for shallow or large-diameter construction coring where the entire string is pulled to retrieve the sample.
Q2: Can I use a concrete coring bit for geological rock?
Generally, no. Concrete bits are engineered for high-speed handheld or stand-mounted rigs and are designed for a mix of aggregate and rebar. Geological bits must account for mineral hardness variations and are designed for the specific torque/pressure curves of a coring rig.
Q3: What is the significance of “Series” numbers in bits?
“Series” usually refers to the matrix hardness. While different manufacturers use different scales, a lower number (like Series 2) is typically for very hard rock, and a higher number (like Series 10) is for softer, abrasive rock.
Q4: How does RQD (Rock Quality Designation) affect bit choice?
RQD measures how “broken” the rock is. If RQD is low (fractured rock), you should avoid surface-set bits because the vibration will shatter the diamonds. Use an impregnated bit with a robust crown profile to handle the impact of fractured zones.
