Selecting High-Performance China Borehole Drilling Equipment: A Technical Procurement Guide

The landscape of global mineral exploration, geotechnical surveying, and water well construction has shifted significantly toward Chinese-manufactured borehole rigs. This transition is not merely driven by cost-efficiency but by the rapid iteration of hydraulic systems and the modularity of drilling platforms. For project managers and procurement officers, the challenge lies in distinguishing between “export-grade” machinery and entry-level domestic models.

Selecting the right China borehole drilling equipment involves more than comparing horsepower; it requires an engineering-first approach to soil-to-rig compatibility, bit-load dynamics, and the structural integrity of the mast under high-torque operations.

Understanding the Technical Segmentation of China’s Drilling Market

The Chinese manufacturing sector categorizes borehole equipment primarily by its drive mechanism and intended geological application. Understanding these distinctions is critical for matching equipment to project KPIs.

1. Spindle-Type Coring Rigs vs. Full Hydraulic Rigs

For decades, the spindle-type rig (such as the classic XY series found in the SD Wanli coring drilling rig category) has been the workhorse of geological prospecting. These rigs utilize mechanical transmissions to provide high torque at lower price points. They are preferred in regions where manual maintenance is easier than electronic troubleshooting.

In contrast, full hydraulic rigs offer infinitely variable speed control and higher safety standards. While the initial CAPEX is higher, the ROI is often realized through faster penetration rates (ROP) and reduced operator fatigue.

2. Mobility and Chassis Integration

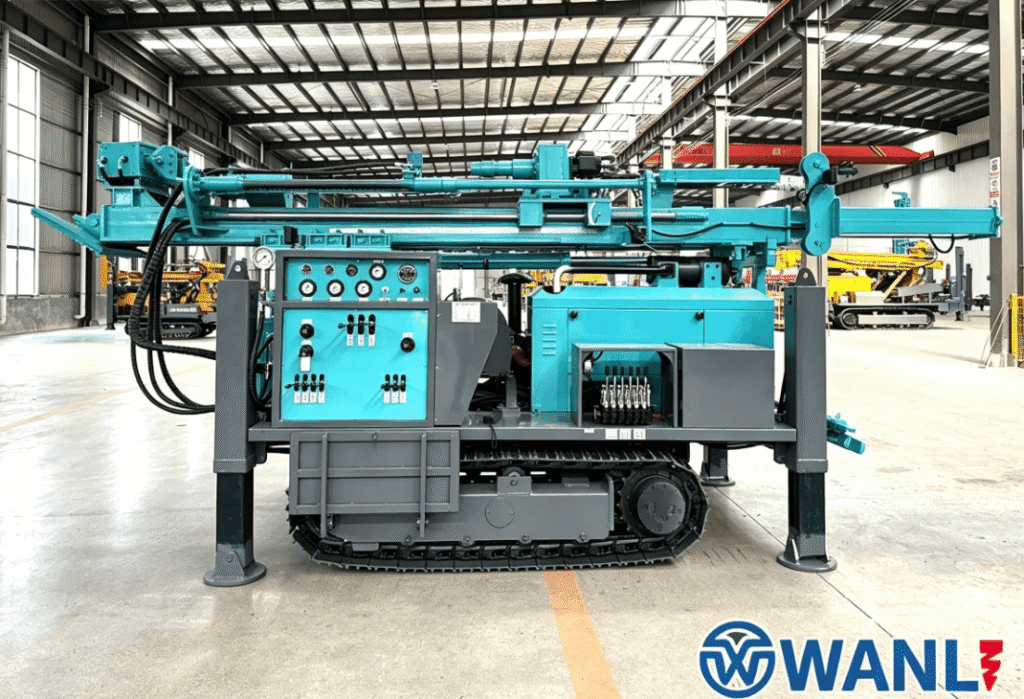

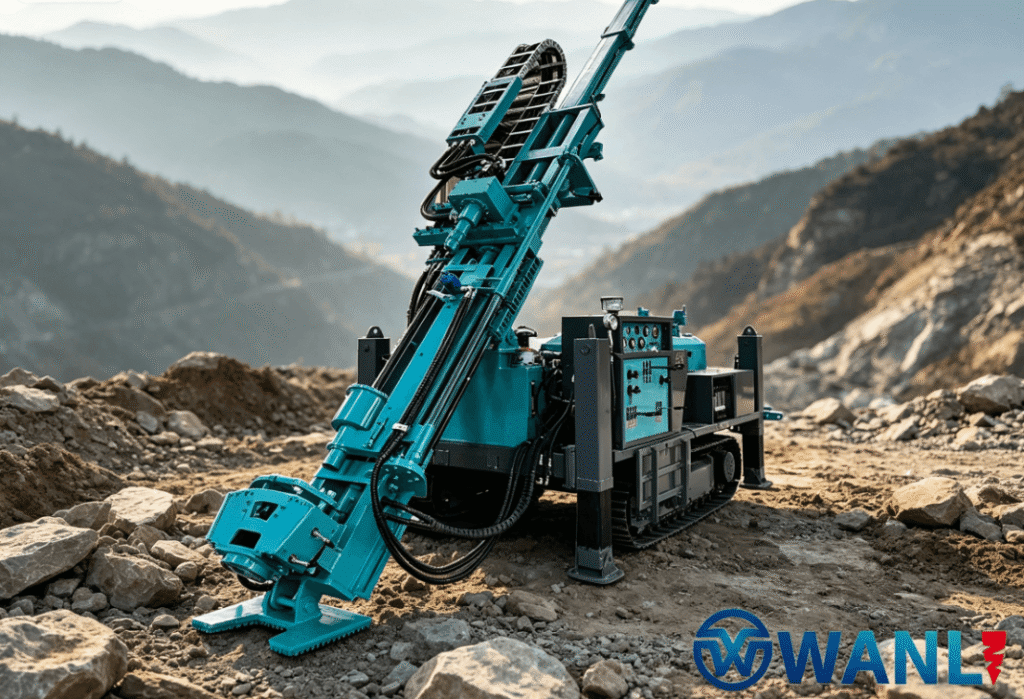

• Crawler-Mounted: Essential for rugged terrains (mining sites, mountainous geotechnical surveys).
• Trailer-Mounted: Ideal for water well drilling where rapid relocation across paved or dirt roads is required.
• Portable/Man-Portable: Designed for remote exploration where equipment must be disassembled and carried by manpower or helicopters.

Key Performance Metrics for B2B Evaluation

When reviewing technical data sheets from Chinese manufacturers, procurement teams should prioritize the following engineering benchmarks to ensure long-term durability in the field.

Material Selection and Structural Integrity

The longevity of a borehole rig is dictated by the quality of steel used in the mast and the precision of the hydraulic valves.

1. The Mast/Derrick: High-quality China borehole drilling equipment utilizes Q345B or higher-grade carbon structural steel. This ensures that under maximum pullback force, the derrick maintains its alignment, preventing “wandering” of the borehole.
2. Hydraulic Systems: Reliability hinges on the pump and valve blocks. Leading manufacturers often integrate Japanese or German hydraulic technology (e.g., Rexroth or Kawasaki) with Chinese-made structural components to balance performance and cost.
3. Heat Dissipation: In tropical or desert environments, the cooling system’s capacity is the primary failure point. Expert-level rigs feature oversized radiators and independent hydraulic oil cooling circuits to prevent seal degradation.

The Role of Application-Specific Engineering

Geological conditions vary, and so must the equipment. A rig designed for soft soil water wells will fail in a hard-rock gold exploration project.

• Hard Rock Formations: Require high-speed spindle rotations and compatibility with diamond bits. The SD Wanli XY-series rigs, for instance, are engineered specifically for wireline coring in hard strata, providing the stability needed for high-quality core recovery.
• Unconsolidated Strata: Demand high-torque, low-speed rotation with mud circulation or air-compressor integration to prevent borehole collapse.

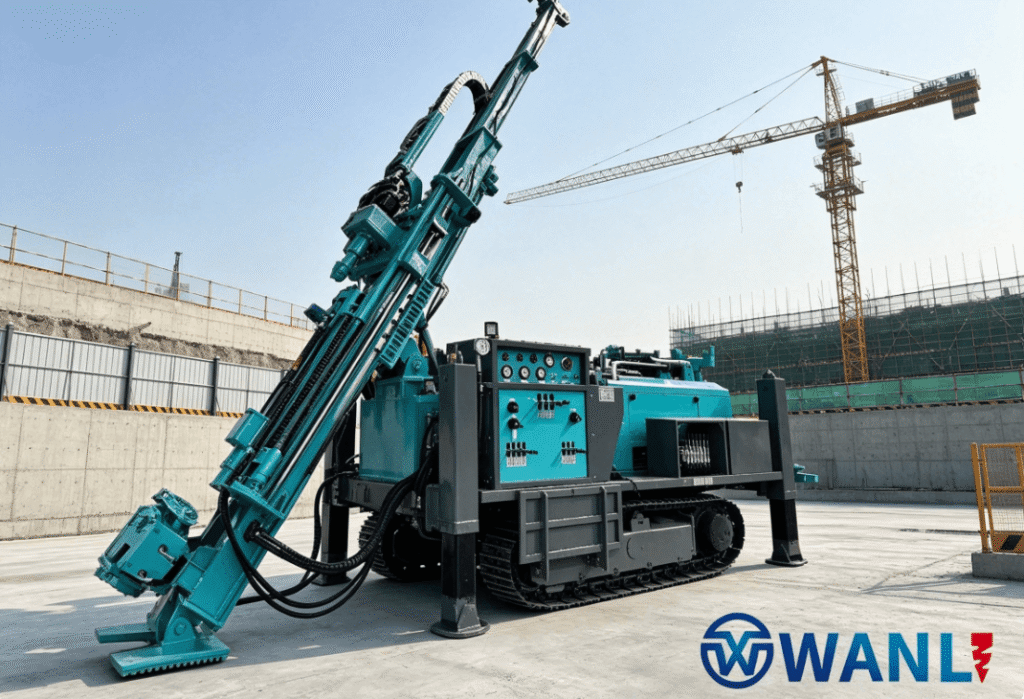

• Urban Geotechnical Surveys: Require low-noise profiles and compact footprints to minimize environmental impact and logistics costs.

Evaluating the Supply Chain: Beyond the Price Tag

In the China manufacturing sector, “Value” is a function of the total cost of ownership (TCO). A lower MOQ (Minimum Order Quantity) or a rock-bottom price often masks deficiencies in heat treatment of gears or the grade of hydraulic hoses used.

Verification Checklist for International Buyers:

• Heat Treatment Documentation: Verify if the gears and shafts have undergone induction hardening.
• Bearing Brands: Ensure the use of NSK, SKF, or top-tier Chinese brands like LYC/HRB.
• Standardization: Ensure the rig uses standard NQ, HQ, and PQ rod threads compatible with international tooling (e.g., Boart Longyear standards).
• After-Sales Support: Does the manufacturer provide a “wear parts” kit (seals, filters, O-rings) for the first 1,000 hours of operation?

Integrating Modern Technology: Data and Automation

The next generation of China borehole drilling equipment is integrating IoT (Internet of Things) for real-time monitoring. For commercial operators, this means:

• Remote Diagnostics: Troubleshooting hydraulic pressure drops from a central office.
• Drilling Logging: Automated recording of ROP, torque, and pressure, which is essential for accurate geological reporting.
• Safety Interlocks: Preventing the hoist from operating unless the stabilizers are fully deployed.

Conclusion: Strategic Sourcing

Navigating the China borehole drilling equipment market requires moving away from generic search terms and into the realm of specific technical requirements. By focusing on hydraulic synergy, material grades, and application-specific configurations—such as the specialized coring rigs offered by manufacturers like Shandong Wanli—global firms can secure equipment that rivals Western counterparts at a fraction of the capital investment.

FAQ: Technical & Commercial Insights

Q1: What is the lead time for custom-configured borehole rigs from China?

Typically, standard models are available within 15–30 days. Customizations involving specific engine brands (e.g., Caterpillar or Cummins) or specialized chassis modifications can extend lead times to 45–60 days due to component sourcing.

Q2: How do I ensure the rig is compatible with my existing drill rods?

Most professional Chinese manufacturers follow international DCDMA standards. Always specify your rod thread type (e.g., WL, API, or NW) during the RFQ stage to ensure the water swivel and spindle adapter are correctly sized.

Q3: Is hydraulic oil included in the shipment?

No. International shipping regulations for “Hazardous Materials” generally prohibit shipping rigs with hydraulic oil or fuel. You must source ISO 46 or 68 hydraulic oil locally upon arrival.

Q4: What are the main cost drivers for borehole drilling equipment?

The primary drivers are the maximum drilling depth, the complexity of the hydraulic system, and the mobility platform (truck-mounted vs. crawler). The engine’s emission standard (Tier 2 vs. Tier 4) also significantly impacts the price for European or North American markets.

Q5: Can these rigs handle DTH (Down-The-Hole) drilling?

Many core drilling rigs can be adapted for DTH drilling by adding a high-pressure air compressor. However, it is vital to check if the rig’s rotation speed and torque are optimized for hammer impacts.

Reference Sources

1. ISO 22475-1: Geotechnical investigation and testing — Sampling methods and groundwater measurements.
2. ASTM D2113: Standard Practice for Rock Core Drilling and Sampling of Rock for Site Investigation.
3. DCDMA (Diamond Core Drill Manufacturers Association): Standards for drill rod and casing dimensions.
4. SGS Technical Reports: Comparative analysis of metallurgy in heavy machinery components.
5. Official Manufacturer Specs: SD Wanli Product Specifications for XY-series technical data.
